Softball Field Lighting Solutions

Softball Field Lighting Solutions

Khoom nta:

1. Nrog 300W - 1000W zog;

2. Tag nrho cov luminous flux mus txog 150lm / W;

3. High index CRI>90, TLCI>90, R9>20, common CRI>80 yog xaiv tau;

4. High-purity aluminium integrated txias ntu fin tshav kub dissipation, ceev kub conduction thiab zoo heev tshav kub dissipation kev ua tau zoo;

5. Professional lub teeb faib, lub lens muaj nyob rau hauv ntau lub kaum ntse ntse xws li nqaim, nruab nrab thiab dav;

6. Professional anti-overflow hood kom zoo tswj spillage thiab zam lub teeb paug;

7. Kev tiv thaiv qib IP67, IK08, tiv taus 17 cua, tsis muaj kev ntshai ntawm sab nraum zoov hnyav;

8. Qhov siab tshaj plaws surge voltage (T3) Vmax 20KV.

Khoom Specification:

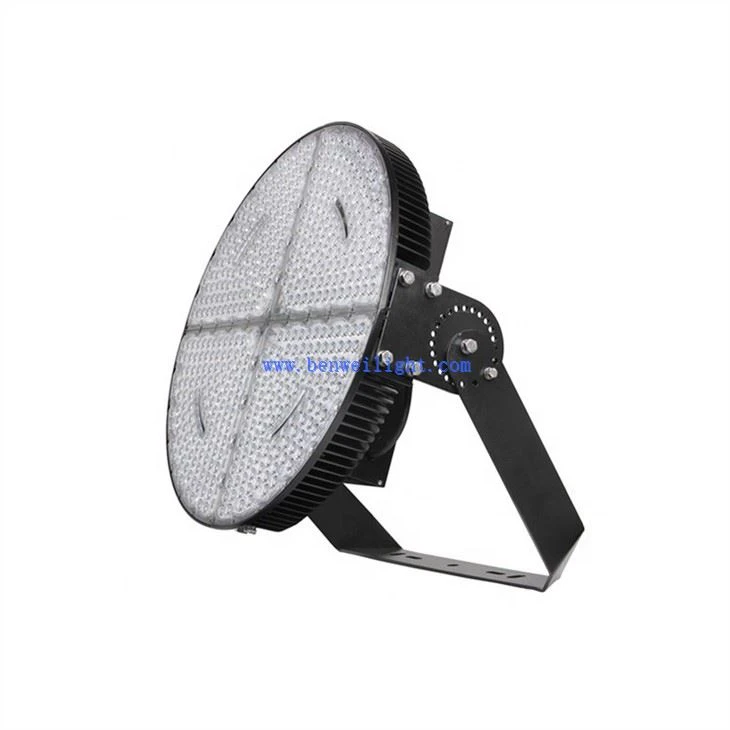

Softball Field Lighting Solutions

Cov duab ntxaws:

Softball yog tsim los ntawm baseball thiab muaj cov cai zoo sib xws. Raws li nrog rau txhua qhov teeb pom kev loj loj, teeb pom kev zoo ntawm qhov chaw softball yog qhov project loj heev. Txawm hais tias qhov kev ua si nyob rau theem twg, lub teeb pom kev zoo ntawm qhov chaw softball yuav tsum xyuas kom meej tias txhua qhov chaw ntawm lub tshav pob yog qhov sib npaug, thiab txhua lub teeb lossis lub teeb hluav taws xob yuav tsis cuam tshuam nrog kev ua tiav ntawm qhov kev ua si. Vim tias qhov kev ua si softball suav nrog cov khoom me me uas txav ntawm qhov nrawm heev, lub teeb pom kev zoo yuav tsum muaj zog dua li lub teeb pom kev zoo rau kev ncaws pob.
 Softball Field Teeb pom kev zoo1.Softball teeb pom kev zoo txhais lub pob muag pob zeb yog hu ua "Pob Zeb Field" vim nws qhov tshwj xeeb ntawm txoj cai-angled kiv cua thiab cov nqaj ntawm lub teeb ci thaum hmo ntuj. Nws zoo li lub pob zeb ci ntsa iab ntawm lub ntuj hmo ntuj. Nws yog qhov paub zoo tias qhov teeb pom kev zoo ntawm lub chaw ntau pob thaum hmo ntuj yog qhov tseem ceeb heev rau kev nce qib ntawm kev ua si. Kev teeb tsa ntawm lub teeb ncej, lub kaum sab xis thiab thaj chaw ntawm lub teeb pom kev zoo yog qhov tshwj xeeb.
2. Softball field size Yuav kom nkag siab txog qhov teeb pom kev zoo ntawm thaj chaw softball, peb yuav tsum xub nkag siab nws qhov loj me. Softball feem ntau yog lub tsev hais plaub sab nraum zoov, uas tuaj yeem muab faib ua thaj chaw sab hauv thiab sab nraud. Qhov loj ntawm lub teb sab hauv yog 27.5 × 27.5m, thiab sab nraud kuj yog kiv cua zoo li, nrog ib lub vojvoog ntawm R=61 ~ 70m, thiab cheeb tsam hauv 7.62m laj kab sab nraud thiab ob sab .


3.Softball teb teeb pom kev zoo qauvSoftball teb teeb pom kev zoo tsim yuav tsum tau tsim nrog siv rau lub illuminance theem, illuminance uniformity, glare txwv, xim kub thiab xim rendering Performance index ntawm lub softball teb teeb pom kev zoo.

- Illumination theem

Tus qauv tus nqi ntawm illuminance rau cov kev ua si ntawm softball yog 750lx, qhov nruab nrab theem ntawm illuminance ntawm tus referee lub podium cheeb tsam yog tsis tsawg tshaj li 200lx, thiab qhov nruab nrab qhov nruab nrab illuminance rau lub auditorium yog tsis tsawg tshaj li 50 lx,

- Illumination uniformity

Qhov piv ntawm qhov tsawg kawg nkaus mus rau qhov siab tshaj plaws ntawm qhov ntsuas theem tsis tsawg tshaj li {{0}}.4, thiab qhov piv ntawm qhov tsawg kawg nkaus rau qhov nruab nrab tus nqi tsis tsawg dua 0.6.

- Glare txwv

Kev sib koom ua ke ntawm cov phiaj xwm vaj tsev thiab teeb pom kev zoo, kev ntsuas los tiv thaiv glare muaj xws li: tsis txhob txhim kho lub teeb pom kev zoo saum toj kawg nkaus hauv kev ua kis las, thiab siv cov teeb pom kev zoo uas tsis tshua muaj glare tsim.

- Xim kub

Xim kub yog tus yam ntxwv uas pom lub teeb muaj qhov tseem ceeb hauv kev yees duab, yees duab, luam tawm thiab lwm yam kev lag luam.Cov xim kub ntawm lub teeb pom kev zoo ntawm lub teeb pom kev zoo yuav tsum yog 5500k, kom nws tuaj yeem simulate lub teeb ntuj ntau li ntau tau, thiaj li muab cov neeg kev nplij siab.

Kuaj
