LED Softball Field Teeb
1. Nrog 300W - 1000W zog;
2. Tag nrho cov luminous flux mus txog 150lm / W;
3. High index CRI>90, TLCI>90, R9>20, common CRI>80 yeem;
4. High-purity aluminium integrated txias ntu fin tshav kub dissipation, ceev kub conduction thiab zoo heev tshav kub dissipation kev ua tau zoo;
5. Professional lub teeb faib, lub lens muaj nyob rau hauv ntau lub kaum ntse ntse xws li nqaim, nruab nrab thiab dav;
Xa kev nug
Khoom Taw qhia

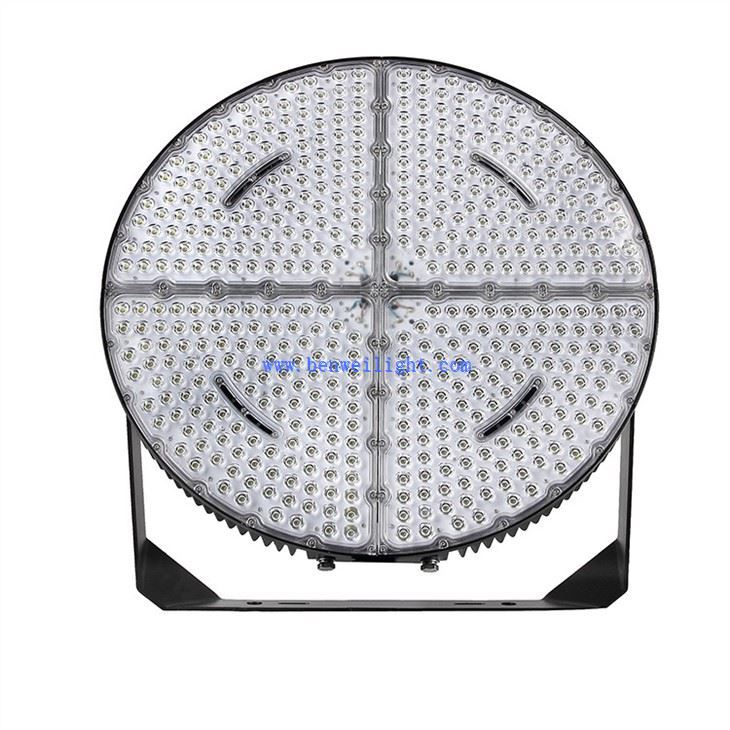

LED Softball Field Teeb
Khoom nta:
1. Nrog 300W - 1000W zog;
2. Tag nrho cov luminous flux mus txog 150lm / W;
3. High index CRI>90, TLCI>90, R9>20, common CRI>80 yog xaiv tau;
4. High-purity aluminium integrated txias ntu fin tshav kub dissipation, ceev kub conduction thiab zoo heev tshav kub dissipation kev ua tau zoo;
5. Professional lub teeb faib, lub lens muaj nyob rau hauv ntau lub kaum ntse ntse xws li nqaim, nruab nrab thiab dav;
6. Professional anti-overflow hood kom zoo tswj spillage thiab zam lub teeb paug;
7. Kev tiv thaiv qib IP67, IK08, tiv taus 17 cua, tsis muaj kev ntshai ntawm sab nraum zoov hnyav;
8. Qhov siab tshaj plaws surge voltage (T3) Vmax 20KV.
Khoom Specification:
LED Softball Field Teeb
| Watt | Qauv | Lumen | Xim kub |
| 300W | BW-FLR-300W | AC 185-305V, AC200-520V, 480V IP67 150-180LM/W | 2700-6500K |
| 400W | BW-FLR-400W | ||
| 500W | BW-FLR-500W | ||
| 600W | BW-FLR-600W | ||
| 700W | BW-FLR-700W | ||
| 800W | BW-FLR-800W | ||
| 900W | BW-FLR-900W | ||
| 1000W | BW-FLR-1000W |
Cov duab ntxaws:

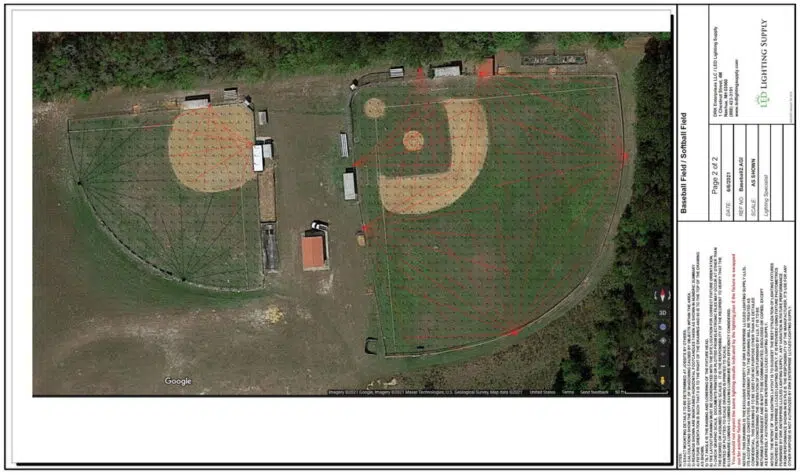

Yuav Ua Li Cas Rau Kev Ua Tau Zoo Softball Field Lighting Layout?Lub teeb pom kev zoo softball pib nrog kev nkag siab txog cov kev xav tau thiab kev siv ntawm qhov chaw ua si. Kev txiav txim siab qhov teeb pom kev zoo rau ob qho tib si sab hauv thiab sab nraud qhov chaw.Qhov teeb pom kev zoo yuav siv los txiav txim siab txog cov chaw ncej uas twb muaj lawm, lossis tuaj yeem hais qhia qhov chaw rau thaj chaw uas tsis muaj cov ncej uas twb muaj lawm. Thiab thaum kawg, raws li kev suav ua tiav, nws yog ib qho tseem ceeb uas yuav tsum tau them sai sai rau lub teeb theem thiab qhov sib npaug ntawm lub teeb nyob rau tag nrho qhov chaw.
Softball Stadium Teeb pom kev zoo li cas txawv ntawm Softball Field Lighting Design?Nws tsis yog, lub hom phiaj kawg yog qhov tseem ceeb tib yam. Lub teeb yog txuas rau cov ncej lossis cov chaw ua si hauv chaw ua si. Lawv tau tsom mus rau thaj tsam thaj tsam kom tau txais cov teeb pom kev uas xav tau. Kev nkag siab txog lub cev qhov chaw ntawm kev teeb tsa lub teeb yog qhov tseem ceeb. Ib yam li cov mounting heights, tab sis lwm yam, tsis muaj qhov sib txawv.
Dab tsi yog Qhov Pom Zoo Teeb Meem rau Softball Field? Kev tshaj lij? Tsev kawm ntawv qib siab? Tsev kawm ntawv theem siab? Me League?
Muaj ntau theem teeb pom kev zoo rau txhua qib kev ua si. Cov qib kws tshaj lij xav tau ntau qib siab dua li kev ua si sib tw me me.
Kev Ua Si Ua Si: 10-20 fc outfield, 20-30 fc infield
Little League Ua Si: 20-30 fc outfield, 40-50 fc infield
Tsev Kawm Ntawv Phaj Siab Ua Si: 20-30 fc outfield, 40-50 fc infield
Tsev Kawm Qib Siab Ua Si: 40-50 fc outfield, 60-70 fc infield
Collegiate Play (TV): 70 fc outfield, 100 fc infield
Dab tsi yog Qhov Zoo Tshaj Ncej Qhov siab siv thaum ua Softball Field Lighting Design?
Muaj qhov zoo dua uas cov ncej siab muaj tshaj tus ncej qis. Nws yooj yim dua los tsim kom muaj qhov sib npaug ntawm qhov chaw ntawm thaj chaw. Peb xav pom cov ncej 30 ko taw lossis siab dua thaum peb ua ib qho kev npaj teeb pom kev zoo ntawm txhua qhov kev ua si sab nraum zoov.
