Khoom Taw Qhia:

QQ20220418175002

Khoom feature:

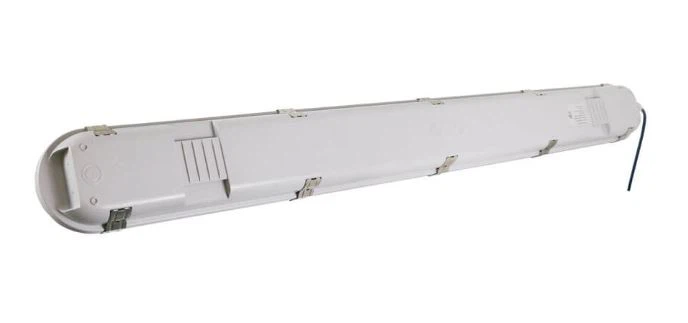

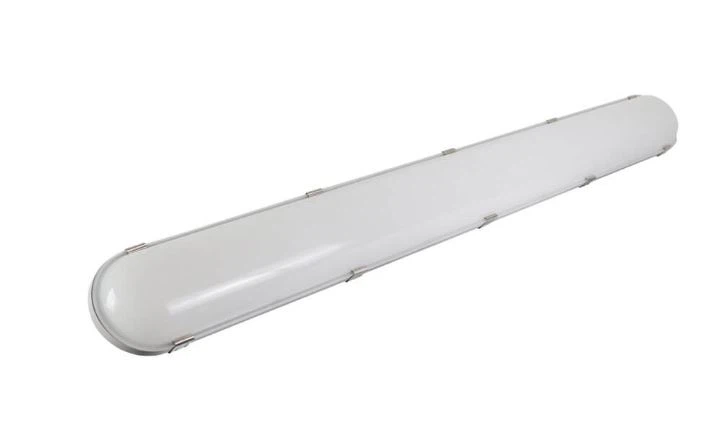

Vapor proof light fixture from Benwei Lighting is waterproof lighting fixture with IP66 waterproof rating for the parking garage, warehouse facility, supermarket, pools, car washes, etc. We offer a five years warranty to ensure you have no worries. It has high-performance heatsinks, high luminous efficiency: >130 l/w. Vapor nruj nrog cov kev xaiv ntse rau microwave sensor thiab roj teeb thaum muaj xwm ceev, uas los ntawm qhov zoo tshaj plaws XSY teeb pom kev zoo chaw tsim tshuaj paus hauv Suav teb. Dab tsi yog qhov vapor nruj fixture txhais? Nws yuav tsum muaj plua plav, tsis muaj dej, tsis muaj zog, thiab corrosion-proof.

Khoom Specification:

Qauv No.	Lub teeb tso zis	Loj	Input voltage	Xim kub	CRI	Lub Teeb Ua Haujlwm	Ntau zaus	Dej tsis sib haum	Kev ua haujlwm kub	Kev ua neej nyob	Sensor
BW-TP25W-XXK	25W	2ft ua	120-347V	4000K 5000K 5700K	>80	>130 LM / W	50/60Hz	IP66	-30 degree rau 45 degree	54, 000 teev	Motion Sensor

BW-TP30W-XXK	30W	4ft ua
BW-TP40W-XXK	40W
BW-TP60W-XXK	60W
BW-TP70W-XXK	70W	8ft ua
BW-TP100W-XXK	100W
BW-TPHV40W-XXK	40W	4ft ua	277-480V
BW-TPHV60W-XXK	60W
BW-TPHV70W-XXK	70W	8ft ua
BW-TPHV100W-XXK	100W

Paub meej ntxiv:

Anti-rub hlua

* Tsis tas yuav tuav lub vaportight fixture board thaum xaim, tso koj txhais tes thiab txuag zog.

* Kev siv txoj hlua los tiv thaiv txoj hlua kuj tiv thaiv txoj kab txuas hauv qab lub hau thiab lub vapor nruj fixture board los ntawm kev rub ntau dhau, ua rau kev sib cuag tsis zoo.

LED Chip

* SMD2835 yog qhov zoo dua rau lub teeb ci ntsa iab zoo li vaportight teeb, * ci ci zoo nkauj dua.

* Nto moo hom-Quality xyuas.

* Tus khub zoo, tus nqi zoo thiab kev txhawb nqa lub sijhawm.

Hlau Board

* Tsuas yog 1.

Daim npav qhov

* Lub vapor nruj coj teeb fixture nrog me me daim npav qhov tsim zoo kawg nkaus integrates lub rooj tsavxwm hlau thiab lub PC npog los pab txhawb txoj hlua ntawm lub hau hauv qab.

Waterproof

* Ntxiv lub taub hau dej tsis zoo ntawm cov kab hluav taws xob ntawm cov khoom siv hluav taws xob tsis zoo, ua raws li IP66 ntsuas dej tsis zoo.

PC npog

* Cov ntaub ntawv PC, ntau dua 90 feem pua kev xa tawm

* 5VA nplaim taws chav kawm thiab ua haujlwm sab nraud ncaj qha

* 3mm Thickness khoom

UL Listed Cheebtsam

* UL teev cov khoom thiab tsim los ntawm peb tus kheej.

* Nruab rau sab nraum qab ntawm lub rooj tsav xwm hlau, zoo dua rau kev xaim.

Thaum muaj xwm ceev roj teeb thaub qab

* Lub 4ft thiab loj dua vaportite teeb fixture tuaj yeem ntxiv roj teeb thaum muaj xwm txheej ceev, lub sijhawm ua haujlwm kub ceev 90 feeb.

Microwave Sensor

* Lub sensor hom: tua thaum nruab hnub, microwave sensor hom thaum hmo ntuj (tag nrho brightness nrog tib neeg, 10-30 feem pua brightness los yog tsis muaj brightness tsis muaj neeg), default brightness tuav lub sij hawm: 5min (10s, 1min, 5min, 15 min rau kev xaiv).

Kev xaim

Piv txwv li: 4ft vapor nruj fixture kev hloov kho thaiv kom yooj yim installation thiab txij nkawm.

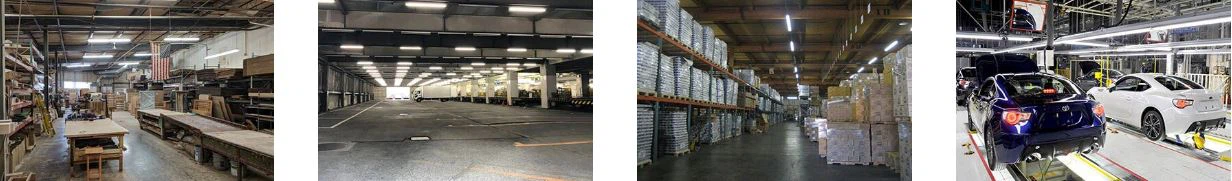

Daim ntawv thov:

Installation txoj kev:

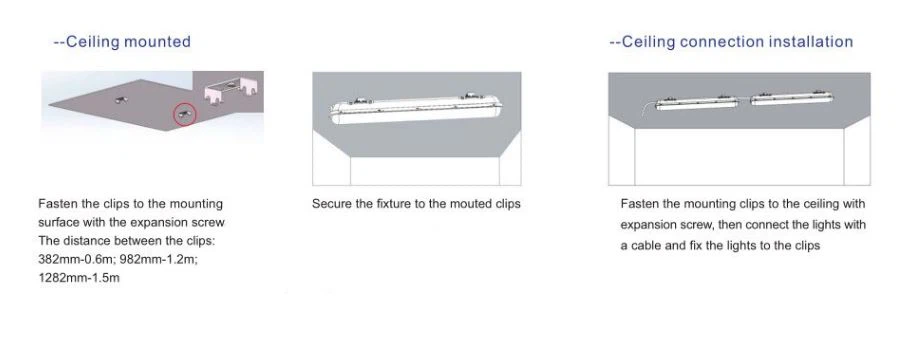

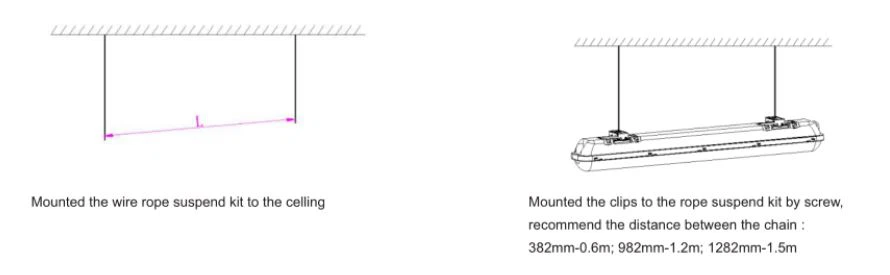

Suspension Mounting Installation

1.Mounted cov hlua hlua khi cov khoom siv rau lub qab nthab.

2.Mounted cov clips rau cov hlua tshem tawm cov khoom siv los ntawm cov ntsia hlau, pom zoo qhov kev ncua deb ntawm cov saw: 382mm-0.6m; 982mm; 5 ;2m. 1282mm {8}}.5m.
