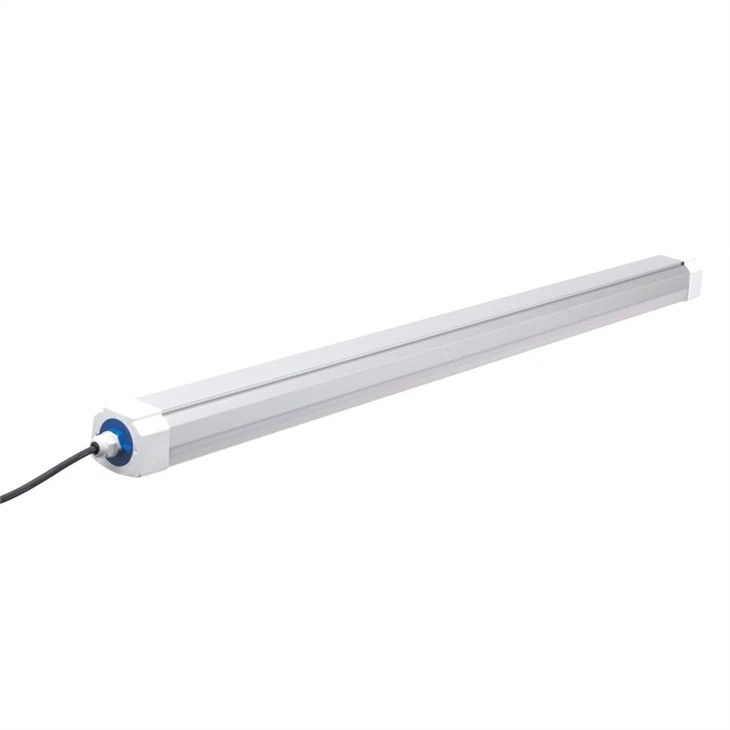

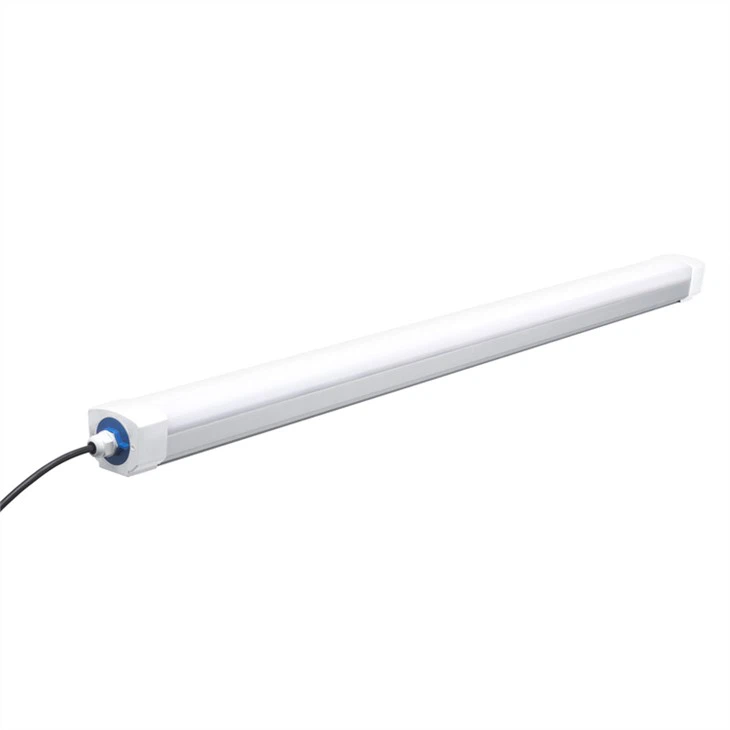

Dali Led Tri Pov Thawj Lub Teeb Dej Pov Thawj Teeb
Dali Led Tri Proof Lub Teeb Dej Pov Thawj Lub Teeb Khoom Muag:
1>Input voltage instability tiv thaiv nrog txhawb rau ib ncig ntawm 30 feeb ntawm ncov 380V
2>Anti-surge & xob laim tawm mus txog 2.5KV, thiab tiv taus 4KV high voltage
3>1.3mm thickness Aluminium vaj tse ntxiv rau nplaim resistant PC diffuser
4>100 ~ 110LM / W thiab 130 ~ 140LM / W
5> 20W 30W 40W 50W 60W 80W 100W 120W
6>88 feem pua kev ua tau zoo, tsis muaj flicker, THD<>
7>Ua haujlwm kub ntawm -30 ~ 50 degree
8>3 core thiab 5 core terminal block connectors muaj
Dali Led Tri Pov Thawj Lub Teeb Dej Pov Thawj TeebKhoom Specification:
Standard Lumen Version
Tshooj No. | Loj | Hwj chim | LEDs | Input voltage | Lumen Kev Ua Haujlwm (± 5%) | Lumen tso zis |
BW-TP65-20W2F-H | L600 * W91 * H75mm | 20W | 120 | AC200-240V/AC100-277V | 100 ~ 110LM / W | 2000 ~ 2200 hli |
BW-TP65-30W2F-H | L600 * W91 * H75mm | 30W | 180 | AC200-240V/AC100-277V | 100 ~ 110LM / W | 3000-3150 LM |
BW-TP65-40W4F-H | L1200 * W91 * H75mm | 40W | 240 | AC200-240V/AC100-277V | 100 ~ 110LM / W | 3920 ~ 4200 hli |
BW-TP65-60W4F-H | L1200 * W91 * H75mm | 60W | 360 | AC200-240V/AC100-277V | 100 ~ 110LM / W | 6000-6300 LM |
BW-TP65-60W5F-H | L1500 * W91 * H75mm | 60W | 360 | AC200-240V/AC100-277V | 100 ~ 110LM / W | 5880 ~ 6300 hli |
BW-TP65-80W5F-H | L1500 * W91 * H75mm | 80W | 432 | AC200-240V/AC100-277V | 100 ~ 110LM / W | 7840 ~ 8400 hli |
BW-TP65-120W8F-H | L2400 * W91 * H75mm | 120W | 728 | AC200-240V/AC100-277V | 100 ~ 110LM / W | 12000-12600 LM |
Hwm Lumen Version
Tshooj No. | Loj | Hwj chim | LEDs | Input voltage | Lumen Kev Ua Haujlwm (± 5%) | Lumen tso zis |
BW-TP65-20W2F-H | L600 * W91 * H75mm | 20W | 120 | AC200-240V/AC100-277V | 130 ~ 140LM / W | 2700 ~ 2800 hli |
BW-TP65-30W2F-H | L600 * W91 * H75mm | 30W | 180 | AC200-240V/AC100-277V | 130 ~ 140LM / W | 4050 ~ 4200 hli |
BW-TP65-40W4F-H | L1200 * W91 * H75mm | 40W | 240 | AC200-240V/AC100-277V | 130 ~ 140LM / W | 5400-5600 LM |
BW-TP65-60W4F-H | L1200 * W91 * H75mm | 60W | 360 | AC200-240V/AC100-277V | 130 ~ 140LM / W | 7980 ~ 8280 hli |
BW-TP65-60W5F-H | L1500 * W91 * H75mm | 60W | 360 | AC200-240V/AC100-277V | 130 ~ 140LM / W | 8040 ~ 8280 hli |
BW-TP65-80W5F-H | L1500 * W91 * H75mm | 80W | 432 | AC200-240V/AC100-277V | 130 ~ 140LM / W | 10800-11040 LM |
BW-TP65-120W8F-H | L2400 * W91 * H75mm | 120W | 728 | AC200-240V/AC100-277V | 130 ~ 140LM / W | 15960 ~ 16800 hli |
Dali Led Tri Pov Thawj Lub Teeb Dej Pov Thawj TeebPaub meej ntxiv:
2.5mm2 thaiv-dhau los ntawm Linkable Heavy Industry Factory Teeb yog tsim los rau qee cov ntawv thov kev lag luam uas xav tau rau kev nkag mus rau cable loj dua xws li 3x2.5mm2 lossis 5x2.5mm2 cable. Ob qhov kawg nrog lub davhlau ya nyob twg thaiv yog ib qho yooj yim rau kev txuas tus kheej.
Length (L: mm) Dav (W: mm) Qhov siab (H: mm)
600 76 67
1200 76 67
1500 76 67
1800 76 67
2400 76 67
Dali Led Tri Pov Thawj Lub Teeb Dej Pov Thawj Lub Teeb Daim Ntawv Thov:
Siv nyob rau hauv underground chaw nres tsheb, warehouse, supermarket, tsev kawm ntawv, metro chaw nres tsheb, chaw nres tsheb npav ect.
Cim npe nrov: dali coj tri pov thawj lub teeb dej pov thawj lub teeb, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, yuav, nqe, zoo, pheej yig, kev muag, hauv Tshuag, dawb qauv
