Khoom Taw Qhia:

gs-light-led-linear-lighting

Khoom feature:

BW LIGHT 's LED Linear Teeb pom kev zoo yog lub zog txuag hluav taws xob, kev saib xyuas qis dua rau cov teeb pom kev zoo ib txwm muaj

Ultra nyias tshiab tsim, Ob kab coj ntawm txhuas PCB, ntau ci ci, tsis tshua muaj teeb pom kev zoo, lub neej ntev

Khoom Specification:

Qauv No	BW-LL-35W	BW-LL-40W
Kev siv fais fab	35W	40W
Dimensi yog	1177x{1}}.5x{3}}mm(1.2m)	1470 x 1.5 x 29 mm (1.5 m)
Luminous	115lm/w & 130lm/w
Input voltage	AC 200-240V
CCT	3000K74000K/5000K/5700K
LED Hom	SMD 2835
Khoom siv	Aluminium plus PC
CRI	>80
Beam Angle	110 degree
Hwj chim Factor	20.95
Hwj chim Efficiency	>90 feem pua
Ua haujlwm gTe mperature	-40 degree - ntxiv rau 45 degree
Cia Kub	-25 degree - ntxiv rau 55 degree
Kev ua neej nyob	>50000 Hs
IP Qib	IP65
Kev teeb tsa	Ncua tseg. Mounted rau kev xaiv

Paub meej ntxiv:

High Efficiency LED Linear Teeb

Directional LEDs tso lub teeb nyob qhov twg nws xav tau yam tsis muaj reflectors kom ua tau zoo heev.

Peb muab cov qauv 120lm / w thiab siab dua luminous efficiency 140lm / w rau kev xaiv.

gs light led linear lighting

BW LIGHT Linear Pendant Teeb pom kev zoo nrog Suspension Mount

Fixtures tuaj yeem ntsia ntawm nws tus kheej lossis txuas nrog cov qauv yam tsis muaj kev txwv. Cable tshem tawm los yog nto-mount.

led linear light suspension mount

Kev sib txuas ceev thiab yooj yim

Txuas txuas txuas tau ntev 1.2M / 1.5M rau kev xaiv

gs light linear led lighting

Daim ntawv thov:

Daim ntawv thov rau Supermarket, Kev lag luam, Warehouse, Subway chaw nres tsheb, Commercial khw, Chaw ua hauj lwm, tsev kawm ntawv, Gymnasium,

tsev kho mob, tsev loj, chaw nres tsheb, chaw ua haujlwm, chav tsev cia khoom, lub thawv xa khoom thiab lwm yam. Hauv qab no yog peb cov phiaj xwm linear coj teeb pom kev zoo

linear led lighting projects

Kev teeb tsa:

Suspended Linear LED Teeb Suspended Mount Guide

1. Laum ob qhov xav tau ntawm lub qab nthab thiab tom qab ntawd coj mus rhaub cov yas nthuav dav rau hauv lub qhov.

2. Hla cov ntsia hlau KA4 * 30 los ntawm cable gripper A, thiab tom qab ntawd muab tso rau hauv lub raj txuas ntxiv.

3. Hla lub stainless hlau cable los ntawm kev kho lub hauv paus B. Cia kho lub hauv paus A txog M mounting bracket thiab ces twisted rau hauv kho puag B.

4. Ntxig ob lub M mounting bracket rau hauv qhov zawj ntawm qhov kawg yam tsis muaj AC input xov hlau. Twist lub ntsia hlau los ntawm lub bracket qhov kom fixate nrog fixture.

5. Twist cable gripper B rau hauv gripper A. Coj tawm lub cable los ntawm gripper A qhov.

6. Txuas L, N, GND cov xov hlau los ntawm lub fixture mus rau cov xov hlau sib txuas ntawm AC qaum ntawm lub qab nthab. Nias lub hau ntawm lub gripper los kho qhov ntev ntawm lub cable thiab theem lub fixture

LED Teeb Fixture Surface Mounted Guide

Laum ob qhov xav tau ntawm lub qab nthab. Qhov kev ncua deb yog 1000 mm piv txwv.

2. Coj mus rhaub cov yas expansion raj rau hauv lub qhov

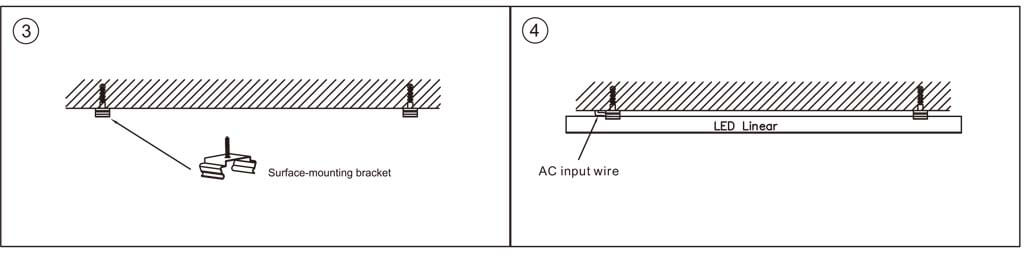

3. Dhau los ntawm KA4 * 30 los ntawm qhov chaw-mounting bracket, thiab ces muab tso rau hauv expansion tube kom nruj.

4. Txuas L, N, GND cov xov hlau los ntawm lub fixture mus rau cov xov hlau sib txuas ntawm AC qaum los ntawm lub qab nthab Kho lub fixture rau saum npoo-mounting bracket
