Cov khoom lag luam

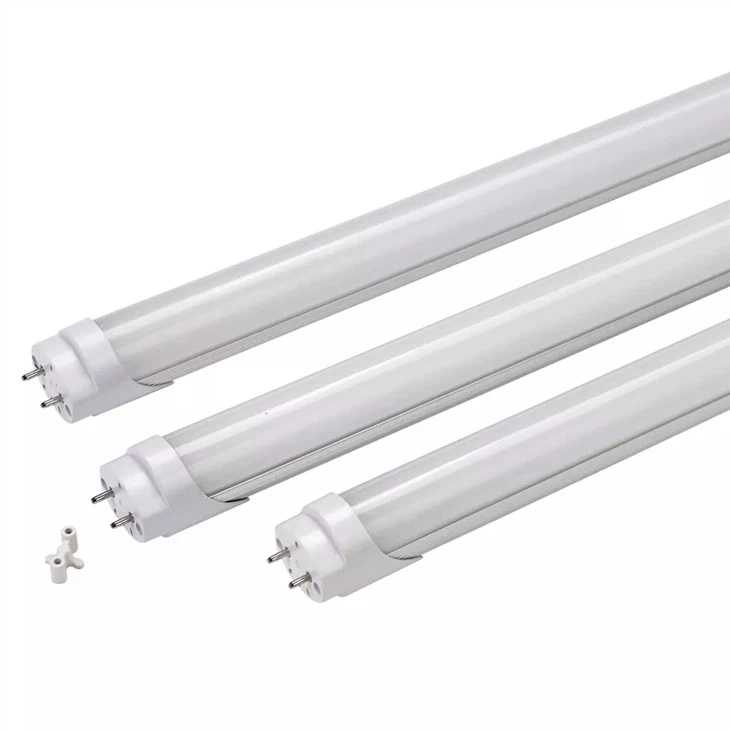

T8 Led Fluorescent Hloov
Warranty: 5 xyoos
Daim ntawv pov thawj: CE / RoHS / ErP / SAA / C-tick / FCC
Sib npaug watt (w): Fluorescent raj 72W
Voltage (v): 85-277V AC
Teeb Efficiency: feem pua 85
Lamp power factor: >0.95
Xa kev nug
Khoom Taw qhia
T8 Led Fluorescent Hloov
Khoom nta:
Nta ntawm 2700-6500K thiab G13 2- tus pin puag.
Rated rau 50000 teev thiab ci ntsa iab heev 1800-lumen tso tawm qhov ballast bypass LED raj zoo meej rau chaw ua haujlwm, chaw ua haujlwm, tsev kawm ntawv, warehouses, supermarkets, chaw tos txais, thiab chaw nres tsheb.
G13 lub hauv paus LED raj muaj lub ballast bypass tsim los ncaj qha hloov cov raj fluorescent uas twb muaj lawm thaum tshem cov ballast uas twb muaj lawm los ntawm lub teeb. Kev cob qha installation yog pom zoo.
Txuag nyiaj thiab hloov mus rau LED. Zog txuag hluav taws xob thiab txhim khu kev qha, Werker LED tube no yog qhov kev xaiv zoo rau kev hloov lub teeb fluorescent teeb uas tsis muaj hnub qub.
Tuaj nrog 5- xyoo lav.
Khoom Specification:
T8 Led Fluorescent Hloov
Loj | Watt | Lumen | Parameter |
2 FT ib | 10w | 18 00 lm | Xim kub: 3000k, 4000k, 5000k, 6000k, 6500k Beam Angle: 120-180degree PF>0.95 / CRI>85r ua Lub teeb lub hauv paus: G13 Warranty: 5 xyoos Khoom siv: Aluminium lub cev ntxiv rau PC npog Lub neej ntev: 50000 xuab moos Warranty: 5 xyoos Milky cover los yog clear cover T8 retrofit LED raj |
3 FT ib | 12w | 2 160 lm | |
14w | 25 20 lm | ||
4 FT ib | 18w | 3 240 lm | |
20w | 3 600 lm | ||
22w | 3 960m | ||
5 FT ib | 25w | 4 500 lm | |
28w | 5 040 lm | ||
30w | 5 400 lm | ||
33w | 5 940 lm | ||
36w | 6 480m |
Cov duab ntxaws:
T8 Led Fluorescent Hloov Qhov Chaw
T8 Led Fluorescent Hloov Loj
Kev teeb tsa
Packing & Delivery
VIM LI CAS US:
TS EN 55015 Kev txwv thiab cov txheej txheem ntawm kev ntsuas lub xov tooj cua cuam tshuam cov yam ntxwv ntawm hluav taws xob teeb pom kev zoo
EN 61000-3-2 Kev txwv rau kev sib haum xeeb tam sim no emissions (cov cuab yeej ntsuas tam sim no<>
EN 61000-3-3 Kev txwv ntawm qhov hloov pauv ntawm qhov hluav taws xob thiab flicker hauv cov khoom siv hluav taws xob tsawg (cov khoom siv ntsuas tam sim no<>
TS EN 61547 Kev qhia tshwj xeeb rau cov khoom siv rau lub hom phiaj teeb pom kev zoo. Cov kev cai EMC Immunity
TS EN 62493: 2010 Kev ntsuas cov khoom siv teeb pom kev zoo cuam tshuam rau tib neeg raug rau electromagnetic teb
IEC 62471 Photobiological kev nyab xeeb ntawm cov teeb thiab teeb lub teeb
IEC 60061-1 Teeb Caps
IEC / EN 62776 Ob chav-capped LED teeb tsim los kho cov teeb pom kev zoo fluorescent - Kev nyab xeeb tshwj xeeb
Cim npe nrov: t8 coj fluorescent hloov, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, yuav, nqe, zoo, pheej yig, kev muag, Tshuag, dawb qauv
