Cov khoom lag luam
TIAB SA 3030
70, 80 & 90 CRI ntawm txhua 3030
Tshaj Tawm Teeb Pom Kev L90 lub neej ntev txog 121k teev nrog 20k teev ntawm LM-80 kuaj
Tsawg dua 1- kauj ruam xim hloov tom qab 16k teev ntawm LM-80 kuaj
Sab saum toj-tier thoob ntiaj teb IP kev them nyiaj
Xa kev nug
Khoom Taw qhia

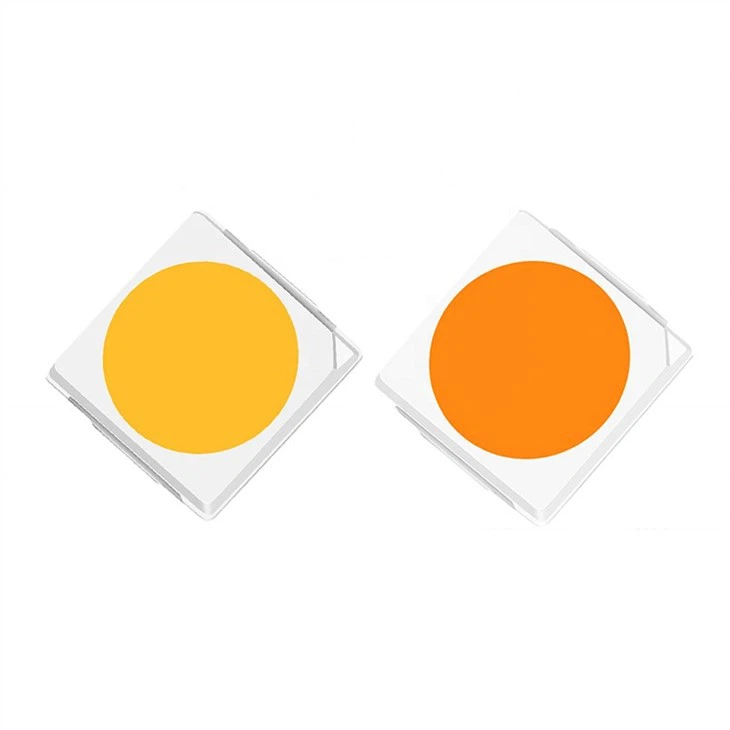

TIAB SA 3030
Khoom nta:
- Kev lag luam txheej txheem pob ua rau kev poob hauv kev hloov pauv rau 3030 pob khoom uas twb muaj lawm
- 1/9thmicro-xim binning enables nruj xim tswj
- Superior luminous flux ntawm max tam sim no rau txo LED suav
- Kub-xim xim tsom xyuas kom ntseeg tau tias cov xim nyob hauv ANSI rau hauv cov ntawv thov raug, 85 degree
- Pab kom 3-, 4-, 5- kauj ruam MacAdam ellipse custom binning kits
Specification ntawm Smd 3030:
| Khoom npe | 1W EMC 3030 SMD LED | Yam khoom qauv | HQS -3030EW420150R8 |
| Lub zog Dissipation | 1.05W | Xim Rendering Index | 80 |
| Forward Voltage | 2.8-3.4V | Saib lub kaum sab xis | 120 degree |
| Forward Tam sim no | 350-500mA | Ua haujlwm kub | -40 ~ ntxiv rau 60 degree |
| Luminous Flux | 140-150LM | Cia Kub | -40 ~ ntxiv rau 85 degree |
| Xim kub | 4000-4500K | Soldering Kub | 260 degree |
Ntau cov duab:
3030 SMD LED Qhov nruab nrab tso zis LED no feem ntau pom nyob rau hauv qis voltage LED strips. Nws siv 1 lub teeb-emitting diode. thiab outputs txog 7 lumens ib nti, ua du, ci ci. Tsawg cua sov yog muab tawm, yog li lawv muaj kev nyab xeeb dua kov dua li lub teeb halogen. Lawv kuj muaj kev ntseeg siab heev, nrog rau kev ntsuas lub neej ntev txog 50,000 teev. Ntau yam xim muaj, ntxiv rau qhov txias thiab sov dawb. Lub 3030 SMD style LED chips feem ntau yog siv rau cov teeb pom kev zoo lossis cov teeb pom kev zoo, xws li hauv qab txee thiab hauv cov ntaiv. Lawv tuaj yeem siv los ua cov teeb pom kev zoo lossis lub teeb plinth, thiab muaj nyob hauv tsev, tsev noj mov, tuav, tsev so, thiab lwm qhov chaw. Ob chav-fais fab 3030 SMD tuaj yeem siv rau cov teeb pom kev dav dav LED daim kab xev, los hloov cov qij halogen lossis cov raj fluorescent.
Cim npe nrov: smd 3030, Suav teb, lwm tus neeg, manufacturers, hoobkas, yuav, nqe, zoo, pheej yig, kev muag, Tshuag, dawb qauv
Tug:
Smd 3030 coj
Xa kev nug
