3 Theem Hnub Ci Vaj Huam Sib Luag Inverter
# Parallel Function mus txog qhov siab tshaj plaws 9 units: Loj dua Loads .
# Kev xaiv kev sib txuas lus: Sab nraud WIFI, Saib xyuas txhua lub sijhawm.
# Slim lub cev, yooj yim installation thiab thauj, pheej yig dua Freight los ntawm huab cua, hiav txwv thiab av.
# PF1.
Xa kev nug
Khoom Taw qhia

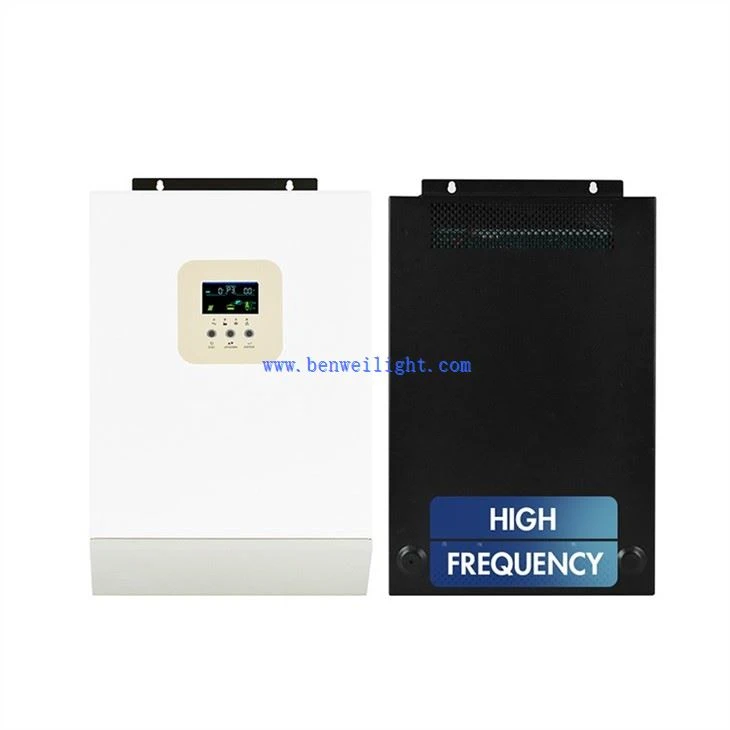

3 theem hnub ci vaj huam sib luag inverter
Feature:
# Parallel Function mus txog qhov siab tshaj plaws 9 units: Loj dua Loads .
# Kev xaiv kev sib txuas lus: Sab nraud WIFI, Saib xyuas txhua lub sijhawm.
# Slim lub cev, yooj yim installation thiab thauj, pheej yig dua Freight los ntawm huab cua, hiav txwv thiab av.
# PF1.
# Txhawb kev ua haujlwm yam tsis muaj roj teeb: Txo cov nqi hnub ci thiab txuag nyiaj.
# High precision ntawm cov zis voltage, ± 5 feem pua, saib xyuas koj cov khoom siv.
# Kev txawj ntse fais fab mov hom, ntse faib ntawm lub hnub ci vaj huam sib luag / mains / roj teeb lub zog sib koom.
# Lithium roj teeb pib rov pib ua haujlwm: yooj yim dua rau lithium roj teeb them.
# Kev them nqi hluav taws xob hluav taws xob / PV them hluav taws xob kho tau: Ua tau raws li cov kev xav tau ntawm cov roj teeb sib txawv.
# Roj teeb rov qab kev sib txuas tiv thaiv nrog fuse hloov: kev ruaj ntseg dua.
Khoom Parameter:
| BWGA 3 theem hnub ci vaj huam sib luag inverter data sheet | ||||
| Qauv | GA3024ML | GA3024MH ua | GA5048MH ua | |
| Tswv yim | Theem | L plus N plus PE | ||
| Nominal voltage | 208/220/230/240VAC | |||
| Voltage Ntau | 154-264VAC ± 3V (Normal Mode) 185-264VAC ± 3V (UPS Mode) | |||
| Ntau zaus | 50Hz / 60Hz (Txhim kho) | |||
| Tso zis | Rated zog | 3000W | 3000W | 5000W |
| Cov zis voltage (AC) | 208/220/230/240VAC ± 5 feem pua | |||
| Tso zis zaus | 5 0 / 60Hz ± 0.1 feem pua | |||
| Waveform | Ntshiab sine yoj | |||
| Hloov Sijhawm (Yeem) | 10ms rau lub computer, 20ms rau cov khoom siv hauv tsev | |||
| Peak zog | 6000 VA | 6000 VA | 10000 VA | |
| Tshaj dhau | Roj teeb hom: 1min @ 102 feem pua ~ 110 feem pua Load 10s @ 110 feem pua ~ 130 feem pua Load 3s @ 130 feem pua ~ 150 feem pua Load 200ms@>150 feem pua Load | |||
| Peak efficiency (lub roj teeb hom) | >94 feem pua | >94 feem pua | >94 feem pua | |
| Roj teeb | Rated voltage | 24 vdc | 24 vdc | 48vd wb |
| Tsis tu ncua voltage them voltage (Optional) | 28.2vd wb | 28.2vd wb | 56.4v wb | |
| Floating charge voltage (Yeem) | 27 vdc | 27 vdc | 54vd wb | |
| charger | Txoj kev them nyiaj PV | MPPT | MPPT | MPPT |
| PV max input zog | 1500W | 3500W | 5500W | |
| MPPT nrhiav ntau yam | 30 ~ 115VDC | 120 ~ 430VDC | 120 ~ 430VDC | |
| Max PV input voltage | 145vdc wb | 450vdc ua | 450vdc ua | |
| Max PV them tam sim no | 60A | 60A | 80A | |
| Max AC them tam sim no | 60A | 60A | 80A | |
| Max them tam sim no | 120A | 60A | 80A | |
| Zaub | LCD zaub | Kev khiav hauj lwm hom / load / input / output, thiab lwm yam. | ||
| Kev sib txuas lus chaw nres nkoj | TSI RS232 | 5PIN/Pitch2.0mm, baud tus nqi 2400 | ||
| Expansion & configuration chaw nres nkoj | 2 × 5PIN / Pitch 2.54mm, lithium roj teeb BMS daim npav sib txuas lus, WIFI daim npav, daim npav tiv tauj qhuav, thiab lwm yam. | |||
| Parallel interface | Tsis muaj | Yog lawm | ||
| Environmental parameters | Kev khiav hauj lwm ib puag ncig kub | 0 ~ 40 degree | ||
| Kev khiav hauj lwm ib puag ncig humidity | 20% ~ 95% (Tsis yog condensing) | |||
| Cia kub | -15 ~ 60 degree | |||
| Qhov siab | Qhov siab yuav tsum tsis pub tshaj 1000m, derating saum 1000m, mus txog 4000m, xa mus rau IEC62040 | |||
| Suab nrov | Tsawg dua lossis sib npaug li 50db | |||
| Cov ntawv pov thawj | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||
Kev teeb tsa hnub ci vaj huam sib luag yam tsis muaj roj teeb lub zog ua ib qho kev thaub qab
Lub hybrid hnub ci inverter tuaj yeem ua haujlwm yam tsis muaj roj teeb. Hom kab ke no yog txuas nrog lub hnub ci vaj huam sib luag thiab rau daim phiaj hluav taws xob uas muab hluav taws xob los ntawm ob qho tib si.
Lub zog tsim los ntawm lub hnub ci vaj huam sib luag yog qhia rau lub tsev rau kev siv thiab lawv tsis tas yuav tsim hluav taws xob los khiav tag nrho tsev neeg vim tias tsis muaj peev xwm ua tau los ntawm daim phiaj hluav taws xob.
Qhov zoo ntawm kev txhim kho hnub ci zog yam tsis muaj roj teeb thaub qab suav nrog:
· Txuag cov nqi hluav taws xob
· Tsawg nqi rau nruab
· Ntau tus phooj ywg environmentally
· Tsawg cov khoom kom tswj tau
Txawm li cas los xij, qhov tsis zoo tseem ceeb yog tias nws yuav tsis muab lub zog thaum lub sijhawm tsaus ntuj lossis hluav taws xob tawm. Ib qho kev teeb tsa nrog roj teeb thaub qab suav nrog cov roj teeb uas tso cai rau hluav taws xob khaws cia rau kev siv tom qab.
Cov tuam txhab roj teeb sib txawv sib txawv hauv qhov loj thiab raug them los ntawm ob lub hnub ci vaj huam sib luag thiab daim phiaj hluav taws xob. Qhov zoo dua yog tias lub teeb nyob twj ywm txawm tias thaum muaj hluav taws xob poob.
Txawm li cas los xij, nws raug nqi ntau dua rau kev teeb tsa thiab muaj ntau yam khoom siv los tswj.
Yog tias koj nyob hauv ib cheeb tsam uas muaj cov kab hluav taws xob tas li, txhim khu kev qha, lub hnub ci fais fab kev teeb tsa tsis muaj roj teeb thaub qab yuav zoo tagnrho vim nws yuav txuag koj nyiaj.
Puas yog koj tab tom nrhiav mus rau hnub ci lossis siv lub roj teeb off-grid hauv koj lub tsev?
Ntawm Benwei, peb muab lub hom phiaj tsim cov cuab yeej siv rau kev lag luam hnub ci hluav taws xob nrog rau cov roj teeb zoo hnub ci thiab cov khoom siv hluav taws xob thiab yog qhov koj xaiv thib ib hauv Benwei hnub ci.
