TRIAC Dimming: Daim ntawv qhia ua tiav rau LED teeb pom kev zoo
Nyob hauv lub ntiaj teb ntawm kev tswj teeb pom kev zoo, TRIAC circuits tau tsim lawv tus kheej los ua cov thev naus laus zis thev naus laus zis rau kev tswj hwm hluav taws xob AC. Cov khoom siv semiconductor no ua tau zoo ntawm kev hloov cov hluav taws xob siab thiab tswj cov theem tam sim no thoob plaws ob qho tib si ntawm AC waveform, ua rau lawv muaj txiaj ntsig tshwj xeeb rau kev siv dimming hauv ob qho tib si hauv tsev thiab chaw lag luam.
Nkag siab TRIAC Technology
TRIAC, uas sawv cev rau Triode rau Hloov Tam Sim No, ua haujlwm raws li kev hloov hluav taws xob zoo. Thaum siv rau cov teeb pom kev zoo, nws feem ntau hu ua 'TRIAC dimming'. Cov cuab yeej siv no ua haujlwm los ntawm lub rooj vag electrode uas ua haujlwm thaum siv qhov zoo lossis qhov tsis zoo, tso cai rau kev tswj xyuas cov khoom siv hluav taws xob.
Qhov zoo ntawm TRIAC Control
Lub zog tseem ceeb ntawm TRIAC circuits nyob rau hauv lawv lub peev xwm los tswj cov high voltages thaum yuav tsum tau tsuas yog tswj tam sim no tsawg. Qhov no ua rau lawv tshwj xeeb tsim nyog rau ntau daim ntawv thov suav nrog:
Lub teeb pom kev hauv tsev dimming
Kev tswj ceev kiv cua
Kev tswj lub cev muaj zog me me
Ntau yam AC switching scenarios
Lawv cov kev paub ntau yam thiab kev ntseeg tau ua rau TRIAC cov tswj hwm yog qhov kev xaiv nrov rau kev tswj cov teeb pom kev zoo txhua hnub.
TRIAC hauv Kev Siv Hluav Taws Xob Niaj Hnub
Rau LED teeb pom kev zoo, TRIAC dimming ua haujlwm los ntawm kev tswj lub teeb siv los ntawm theem tswj. Thaum qhib, tus maub los txo hwj chim conduction, ua rau dimmed illumination. Tshwj xeeb TRIAC- cov khoom siv hluav taws xob dimmable tau tsim tshwj xeeb los ua haujlwm nrog triac dimmer keyboards, uas muaj cov txhuas casings rau kev pom cov cua sov.
Muaj nyob rau hauv ntau yam wattages (10W, 25W, 50W, 75W), cov khoom siv fais fab no muab kev tswj ncaj nraim rau:
LED daim kab xev teeb
Hauv qab - txee teeb pom kev zoo
LED teeb pom kev zoo
Lwm yam kev siv LED
Installation thiab Compatibility

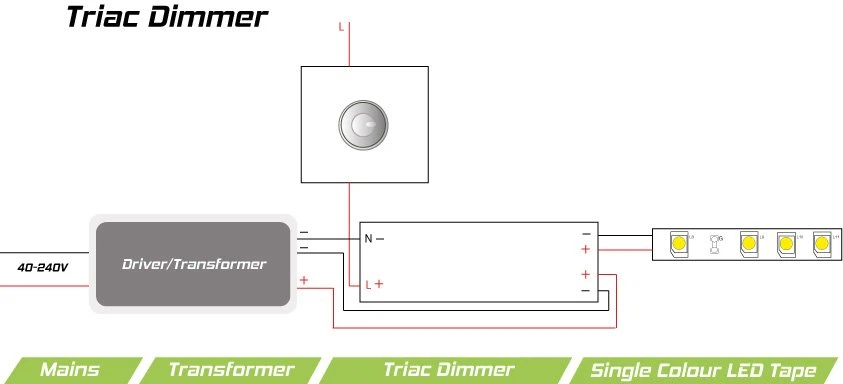

Txuas TRIAC dimmers rau LED tsav tsheb yuav tsum tau ceev faj. Cov kev teeb tsa feem ntau siv tus qauv rau pem hauv ntej theem dimmer suav nrog TRIAC thiab kev tiv thaiv hluav taws xob. Qhov kev tiv thaiv yog tswj los ntawm lub potentiometer, thaum lub RC Circuit Court tswj qhov ncua sij hawm ua ntej TRIAC ua kom (lub npe hu ua lub kaum sab xis tua).
Cov ntsiab lus tseem ceeb compatibility:
Ua ntej -ntug dimmers(TRIAC-raws li) yog Ameslikas tsim rau incandescent thiab halogen qhov muag teev
Tom qab -ntug dimmers(siv MOSFETs lossis IGBTs) muab kev tswj kom zoo dua nrog cov khoom qis qis
Ib txwm txheeb xyuas kev sib raug zoo ntawm theem -txiav dimmable LED tsav tsheb thiab dimmer keyboards ua ntej kev teeb tsa
Terminal Configuration thiab Kev Ua Haujlwm
Lub TRIAC nta peb lub davhlau ya nyob twg: MT1, Rooj vag, thiab MT2. Thaum xaim nyob rau hauv qhov sib npaug sib npaug nrog ib lub rooj vag ib leeg, tam sim no tuaj yeem xa mus rau ob qho kev taw qhia ntawm MT1 thiab MT2 terminals, ua kom muaj txiaj ntsig AC lub zog tswj.
Kev koom ua ke nrog Modern Systems
TRIAC thev naus laus zis tswj qhov cuam tshuam los ntawm kev sib raug zoo nrog:
Tsev automation systems (Lutron, KNX)
Ntau hom teeb pom kev zoo nrog rau LED strips
Mains voltage daim ntawv thov (100-240V AC)
Rau kev ua haujlwm zoo nrog TRIAC cov khoom siv hluav taws xob, python fais fab cable raug pom zoo vim nws pab txhawb DC sensor installation hauv AC-powered ib puag ncig.
Nkag siab Dimming Curves
Lub dimming nkhaus sawv cev li cas dimmers teb rau voltage tso zis txheeb ze rau tswj cov teeb liab input. LED teeb feem ntau dim proportionally kom tau txais cov tswv yim hauv kev sib raug zoo, tsim qhov hu ua 'dimming nkhaus'.
Sib piv: Leading vs. Trailing Edge Dimmers
| Feature | Leading Ntug | Trailing Ntug |
|---|---|---|
| nyuaj | Yooj yim, pheej yig dua | Ntau sophisticated, kim |
| Load Capacity | Siab dua yam tsawg kawg nkaus load | Tsawg kawg nkaus load |
| Daim ntawv thov | Lub hom phiaj dav dav, tsis tshua muaj nyob hauv LED circuits | Qhov zoo tshaj plaws rau qis -powered teeb pom kev zoo circuits |
Kev siv tswv yim
TRIAC controllers muab ob qho tib si efficiency thiab mus tas li los ntawm:
Txo thiab kho 120V AC rau 12/24V DC cov teeb liab sib xws nrog LED strips
Txhais cov ntaub ntawv teeb liab thiab txhais cov lus qhia rau LED strips
Ua kom muaj ntau yam - lub hom phiaj teeb pom kev zoo ntawm ntau hom teeb
Xaus
TRIAC dimming tseem yog ib qho tseem ceeb hauv kev tswj cov teeb pom kev zoo, muab kev ua tau zoo thiab kev sib raug zoo. Txawm hais tias koj tab tom tsim cov teeb pom kev zoo hauv tsev lossis kev teeb tsa kev lag luam, kev nkag siab TRIAC cov hauv paus ntsiab lus ua kom muaj txiaj ntsig zoo rau cov kev daws teeb meem dimming uas sib npaug kev ua tau zoo, kev sib raug zoo, thiab tus nqi -kev ua tau zoo.
Rau cov ntawv thov kev tshaj lij, InStyle LED muaj cov kev tswj xyuas TRIAC cov kev daws teeb meem suav nrog 10-watt TRIAC LED tsav tsheb thiab ib leeg-channel receiver modules muaj peev xwm tswj tau 12V lossis 24V teeb pom kev zoo.
