Spectral Code of Cleanroom Lighting: Safeguarding Photochemical Processes with Amber LEDs
Hauv micron thiab nano- nplai thaj tsam ntawm semiconductor manufacturing, biopharmaceuticals, thiab precision chemical engineering, stringency ntawm ib puag ncig tswj yog muab. Txawm li cas los xij, ib qho tsis tshua pom tsis tau tseem ceeb ib puag ncig hloov pauv yogteeb. Lub ultraviolet thiab luv luv - wavelength xiav lub teeb uas muaj nyob rau hauv ib txwm dawb teeb pom kev zoo ua raws li ib tug tsis pom "contaminant" thiab txheej txheem killer raucov ntaub ntawv photochemically rhiab heevxws li photoresists, qee yam bio reagents, thiab photosensitive compounds. Txhawm rau tiv thaiv qhov no, niaj hnub qib siab - chav huv huv tau siv lub tswv yim kho qhov muag tseem ceeb:Amber LED teeb pom kev zoo. Qhov no tsis yog rau ambiance tab sis ib qho kev tiv thaiv kev tiv thaiv raws li kev tswj xyuas qhov tseeb wavelength.
Sib piv Kev Ntsuam Xyuas: Cleanroom Lighting Spectrum Strategies
Txhawm rau kom nkag siab meej txog qhov tsim nyog ntawm amber LED teeb pom kev zoo, lub rooj hauv qab no piv cov kev ua tau zoo ntawm cov teeb pom kev sib txawv hauv cov chaw huv si uas muaj teeb pom kev zoo - cov ntaub ntawv rhiab heev.
| Hom teeb pom kev zoo | Hom Spectral Profile | Kev pheej hmoo tseem ceeb rau cov khoom siv Photochemically Sensitive (xws li Photoresist) | Kev cuam tshuam rau cov neeg ua haujlwm | Kev Ntsuam Xyuas Tag Nrho & Kev Siv Tau Zoo |
|---|---|---|---|---|
| Tsoos fluorescent / Hlau Halide | Dav, nruam spectrum nplua nuj nyob rau hauv ultraviolet (UV) thiab xiav -violet lub teeb. | Txaus ntshai heev. UV (<400nm) carries high energy, capable of directly triggering unintended polymerization or decomposition of photoresist. Blue light (400-500nm) may also activate certain photo-initiators, causing material performance drift or failure. | Perceptible flicker thiab glare, ua rau pom kev qaug zog ntawm kev ua haujlwm ntev. | Tsis haumrau thaj chaw photolithography. UV leakage thiab broad spectrum ua rau muaj kev pheej hmoo ntawm cov txheej txheem. |
| Standard Dawb LED | Spectrum nta lub ncov ntse hauv cheeb tsam xiav (~ 450nm), hloov mus rau dawb ntawm phosphors; tsawg kawg UV emission. | Nruab nrab rau siab Risk. Thaum zoo li UV-dawb, lub siab - lub zog xiav lub ncov tseem tuaj yeem cuam tshuam rau photoresists rhiab rau cov wavelengths tshwj xeeb, nthuav qhia qhov tsis paub tseeb. | Lub teeb yog concentrated; glare tswj nyob ntawm fixture tsim. Tsawg- cov khoom lag luam zoo yuav ua rau muaj kev txhawj xeeb txog teeb meem phom sij. | Haum rau lub teeb- qhov chaw tsis hnov tsw: sib dhos, tshuaj xyuas, ntim. Yuav tsum tau nruj spectral compatibility validation ua ntej siv nyob rau hauv lithography bays. |

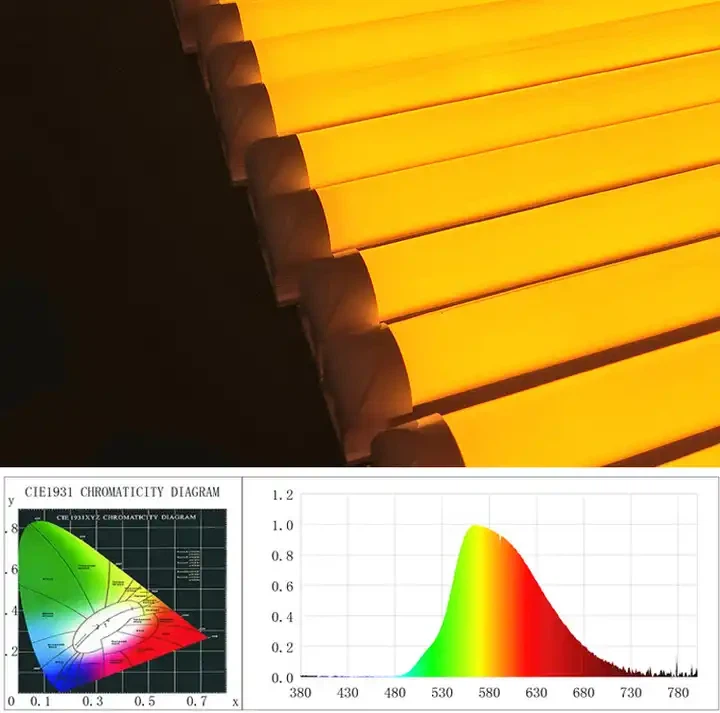

| Amber LED (piv txwv li, 590nm) | Nqaim spectrum, ncov nyob rau hauv580-600 nmyellow- cheeb tsam amber, zoo lim tag nrho lub teebqis dua 500nm(xiav, violet, UV). | Tsawg heev. Nws lub zog photon qis tsis txaus los ua rau cov tshuaj tiv thaiv photochemical nyob rau hauv feem ntau photoresists thiab rhiab cov ntaub ntawv, muab ib tug zoo "optical qhov rais." | Lub teeb muag muag, txo qis glare thiab retinal xiav lub teeb raug, txo qhov muag pom thaum ua haujlwm ntev. | Core Application: Photolithography bays, photoresist txheej / chaw cia khoom, bio photosensitive labs, precision tshuaj synthesis zones. Cov txheej txheem tshuaj tiv thaivcov ntaub ntawv photochemically rhiab heev. |
| Tunable Spectrum LED Qhov System | Programmable switching ntawm dawb thiab amber teeb, los yog hla ib tug dav gamut. | Tswj Risk. Tso cai rau kev hloov pauv hloov pauv raws li cov txheej txheem xav tau: siab -CRI dawb rau kev pom kev ua haujlwm hauv qhov tsis yog- theem rhiab heev; instant hloov mus rau hom kev nyab xeeb amber rau kev ua haujlwm rhiab heev. | Yooj yim tshaj plaws, optimizes tib neeg yam tseem ceeb rau ntau yam haujlwm. | Tom ntej- saib kev daws teeb meem. Qhov zoo tshaj plaws rau R & D cov chaw lossis cov kab tsim khoom siv tau yooj yim nrog ntau cov txheej txheem ntws, ntsuas kev nyab xeeb thiab ua haujlwm tau zoo. |
* Ceebtoom: Photoresists muaj qhov sib txawv spectral rhiab heev nkhaus (piv txwv li, g- kab, i- kab, KrF, ArF sib haum mus rau txawv UV bands) tab sis universally rhiab heev rau luv luv - wavelength lub teeb. Lub ncov ~ 590nm ntawm amber LEDs yog ib qho kev sib haum xeeb tsim los raukom zam dhaucov kab ua kom nquag plias thaum muab qhov muag pom kev txaus.*
Kev Ntsuam Xyuas: Yuav ua li cas Amber LEDs Tsim "Optical Barrier"
Lub Physics ntawm Wavelength Filtering
Cov tshuaj tiv thaiv photochemical yog pib los ntawm photon zog (E=hc/λ). UV thiab xiav lub teeb muaj luv luv wavelengths thiab siab zog, txaus los tawg los yog tsim tshuaj bonds nyob rau hauv photosensitive cov ntaub ntawv (xws li, yees duab-acid generators nyob rau hauv photoresist). Photons emitted los ntawmamber LEDsnyob ib ncig ntawm590nm ua have energy of about 2.1eV, far below the threshold (typically >3.0eV) yuav tsum tau qhib cov photoresists feem ntau, tiv thaiv lub cev raug mob. Qhov no tseem ceeb tsim ibwavelength - tshwj xeeb kev nyab xeeb barrierraucov ntaub ntawv photochemically rhiab heevhauv chav huv.
Qhov zoo tshaj plaws ntawm LED Technology
Raws li ib tugchav tsev teeb pom kev zooqhov chaw, LEDs muab cov txiaj ntsig zoo hauv lub cev:
Ntshiab, Controllable Spectrum: Precise semiconductor cov ntaub ntawv thiab phosphor thev naus laus zis tawm los nqaim amber spectrum nrogtsis muaj UV lossis IR hluav taws xob.
Tsawg Thermal Radiation: High photoelectric conversion efficiency txhais tau hais tias deb tsawg dua radiant tshav kub tshaj hlau halide teeb, txo qhov kev pheej hmoo ntawm workpiece kub hloov los yog cov khoom thermal degradation.
Lub neej ntev & ruaj khov: Lub neej ntev tshaj li 50,000 teev txo qis kev pheej hmoo ntawm kev kis kab mob los ntawm kev hloov kho ntau zaus uas tuaj yeem ua txhaum kev huv huv.
Cleanroom-Adaptive Design
Muab siab rauCleanroom LED fixtures(piv txwv li, recessed troffers, kaw downlights) tsis yog lub teeb xwb tab sis ib feem ntawm kev tiv thaiv kab mob:
Kev tsim kho kaw: Rated IP65 lossis siab dua, tiv thaiv cov khoom tso tawm los ntawm cov khoom siv sab hauv thiab tso cai rau kev tu kom nruj.
Smooth, Cleanable Nto: Cov npoo yog seamless thiab resistant rau tshuaj tua kab mob.
Flush Mounting: Nruab theem nrogT-bar daim phiaj ceilingstxhawm rau tiv thaiv plua plav thiab huab cua turbulence.
Kev txiav txim siab txog kev siv & kev coj ua zoo tshaj
Thaum npaj ibamber LED cleanroom teeb pom kev zoosystem, ib tug holistic mus kom ze yuav tsum tau:
Illuminance & Uniformity: Yuav tsum ua raws li cov qauv (piv txwv li, cov cai tsim qauv hauv chav huv), ua kom txaus thiab txawm tias lub teeb pom kev zoo (feem ntau yog 300-500 lux) ntawm cov dav hlau ua haujlwm rau kev ua haujlwm zoo.
Kev sib xyaw teeb pom kev kub ceev: Kev nyab xeeb- teeb pom kev zoo thaum muaj xwm ceev yuav tsum tau tsim los ntawm nws tus kheej, kuj siv tsis yog - cuam tshuam wavelengths.
Dimming & Scene Control: Hauvtunable spectrum cleanroom teeb pom kev zoosystems, nkag mus tswj yuav tsum tiv thaiv tsis tau kev tso cai hloov mus rau qhov tsis zoo spectral hom nyob rau hauv rhiab heev.
FAQ
Q1: Puas yog tag nrho cov photoresists tsuas yog nkag siab rau UV teeb? Puas yog 590nm amber teeb muaj kev nyab xeeb kiag li?
A1: Tsis yog. Feem ntau cov photoresists yog tsim los rau cov kab UV tshwj xeeb (xws li 365nm i- kab, 248nm KrF). Txawm li cas los xij, qee cov khoom siv qib siab lossis cov tshuaj tshwj xeeb yuav muaj kev nkag siab zoo mus rau qhov pom xiav -green range. Yog li ntawd,590nm LED teebyog ib lub tswv yim universal rautxo qhov txaus ntshai heev. Rau cov txheej txheem tshwj xeeb, sab laj nrog tus neeg muag khoom thiab kev coj uaspectral compatibility xeem.
Q2: Puas ua hauj lwm ntev - lub sij hawm nyob rau hauv lub teeb amber cuam tshuam rau tus neeg teb xov tooj txoj kev txiav txim xim?
A2: Yog. Qhov tseeb xim kev ntxub ntxaug yog tsis yooj yim sua nyob rau hauv monochromatic amber teeb. Cov kev daws teeb meem feem ntau suav nrog:
Zoning: Txwv tsis pub lub teeb dawb huv rau cov khoom siv tseem ceeb - tuav thaj chaw nkaus xwb.
Localized Dawb Teeb: Sivtunable spectrum LED fixtureslos yog siab siab -CRI dawb ua hauj lwm teeb pom kev zoo ntawm cov chaw soj ntsuam, xyuas kom meej cov ntaub ntawv rhiab heev yog shielded thaum siv.
Tunable Systems: Ua haujlwm thawj amber ambient system nrog activatablesiab -CRI dawb LED ua haujlwm teeb.
Q3: Dab tsi yog qhov txawv ntawm amber LED teeb pom kev zoo thiab "daj teeb"?
A3: Ib txwm "daim teeb daj" (xws li, sodium vapor lossis teeb nrog cov lim daj) tuaj yeem muaj qhov tsis zoo nrog qhov tsis zoo uas cuam tshuam luv luv - wavelength emission, qis dua, thiab cov xim tsis zoo. Niaj hnubamber LEDsyog cov khoom muaj zog- xeev nrog cov qauv tsim ua tiav, ua kom tsis muaj zog tawm sab nraud ntawm lub hom phiaj wavelength (xws li 590nm). Lawv muab kev ua tau zoo dua, kev ntseeg siab, thiab yog cov khoom tsim kho rau siab -ib puag ncig zoo lisemiconductor fabrication chaw.
Q4: Yuav ua li cas peb thiaj li paub tseeb tias lub teeb pom kev hauv chav huv si ua tau raws li cov cai tswj kev nyab xeeb photochemical?
A4: Ob qhov kev ntsuas tseem ceeb yog qhov tseem ceeb:

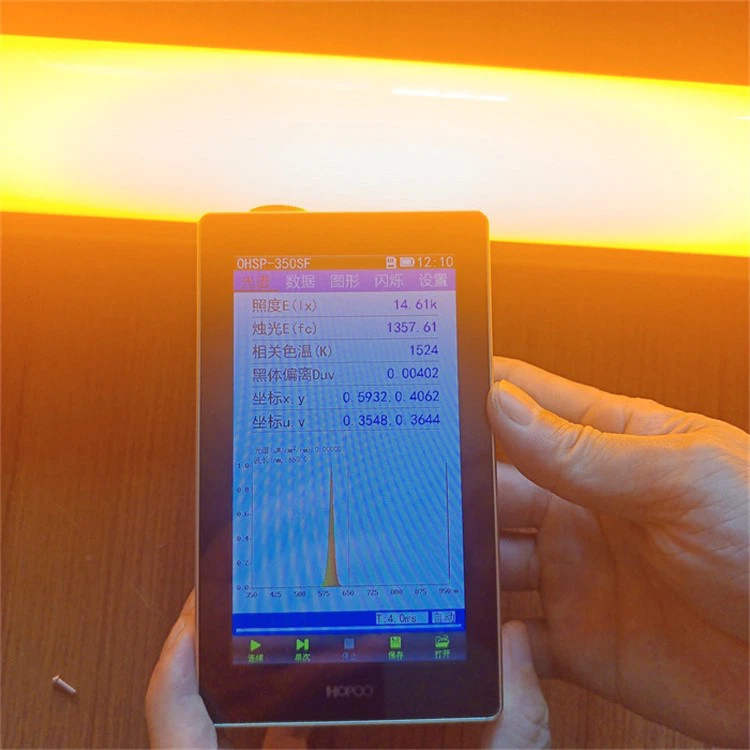

Spectral Radiance ntsuas: Siv lub spectrometer los ntsuas qhov Spectral Power Distribution ntawm lub dav hlau ua hauj lwm, paub meej tias irradiance nyob rau hauv cov khoom rhiab bands (xws li,<500nm) is below its safety threshold.
Ambient Light Leak Check: Xyuas kom tsis txhob muaj teeb pom kev sab nraud ntawm qhov sib txawv (xws li, nruab hnub nrig los ntawm lub qhov rais, lub teeb dawb ntawm qhov chaw nyob ib sab) xau rau hauv thaj chaw rhiab heev, feem ntau tswj hwm los ntawm cov ntaub thaiv npog thiab airlocks.
Q5: Puas muaj cov kev daws teeb meem rau kev rov kho cov chav huv huv uas twb muaj lawm nrog cov teeb pom kev zoo LED?
A5: Yog tias kev hloov kho tag nrho tsis ua tau, xav txog cov kev pheej hmoo no - cov kauj ruam txo:
Ntxiv Optical Lim: Nruab ntev - dhau cov ntxaij lim dej (xws li, 500nm txiav-on) dhau cov khoom siv uas twb muaj lawm, txawm tias qhov no yuav txo tau qhov ua tau zoo thiab tuaj yeem cuam tshuam rau kev tswj xyuas thermal.
Txheej Txheem Tiv Thaiv: Siv lub teeb nruj- nruj tiv thaiv rau tag nrho cov ntim khoom rhiab thiab raug cov txheej txheem raug.
Zoning & Teem sijhawm: Ua kom lub teeb pom kev zoo- ua haujlwm rhiab rau qee qhov chaw / sijhawm, siv cov khoom siv teeb pom kev zoo amber.
Txawm li cas los xij, rau lub sijhawm ntev - cov txheej txheem ruaj khov thiab ua raws,txhim kho lub siab zoo amber LED cleanroom teeb pom kev zootseem yog qhov txhim khu kev qha tshaj plaws thiab kev daws teeb meem.
Sau ntawv & Qhov chaw
Photoresist spectral rhiab heev cov ntaub ntawv hais txog cov ntaub ntawv kev tshaj lij los ntawm cov neeg muag khoom loj (xws li JSR, TOK, Shin-Etsu).
Cleanroom teeb pom kev zoo tsim qauv siv cov cai hauv cov lis dej num xws liCleanroom Design Standardsthiab SEMI (Semiconductor Equipment and Materials International) cov qauv.
LED spectral yam ntxwv thiab cov ntaub ntawv kev nyab xeeb photobiological siv IEC 62471 thiab cov ntaub ntawv cuam tshuam IESNA.
Lub hauv paus ntsiab lus ntawm luv luv - wavelength lub teeb cuam tshuam rau cov ntaub ntawv photochemical yog ua raws li cov kev cai lij choj photochemistry (xws li Stark- txoj cai Einstein) thiab kev tshawb fawb ntawm daim duab -induced polymerization mechanisms.
Cleanroom fixture structural yuav tsum yog raws li kev tshuaj xyuas cov qauv tsim los ntawm cov chaw tsim khoom tshwj xeeb hauv chav teeb pom kev zoo (xws li Luft, Terra Universal).
