Halogen{0}}rau-LED MR16 Minefield: Test Transformer Compatibility & Taming Voltage Fluctuations

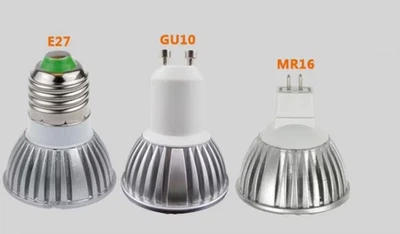

Retrofitting qub halogen-raws li qis-voltage teeb pom kev zoo nrog lub zog-cov teeb pom kev zoo MR16 LED cog lus tias yuav txuag tau nyiaj thiab siv tau ntev. Txawm li cas los xij, qhov kev hloov pauv yog fraught nrog qhov muaj peev xwm pitfalls, feem ntau yog nyob rau ntawm transformer compatibility thiab rhiab heev rau voltage fluctuations. Kev nkag siabua li casmus kuaj compatibility thiabvim li castxawm tias me me voltage viav vias (± 10%) ua rau muaj kev puas tsuaj rau qee qhov LEDs yog qhov tseem ceeb rau kev ua tiav, flicker - hloov kho dawb.
Ntu 1:Kuaj MR16 LED Compatibility nrog Transformers uas twb muaj lawm
Qhov kev sib tw tseem ceeb nyob hauv qhov sib txawv ntawm cov teeb halogen thiab lawv cov hloov pauv LED:
Halogen Teeb:Yooj yim resistive loads. Lawv kos qhov sib npaug ntawm qhov tam sim no tsis tu ncua rau qhov hluav taws xob muab (Ohm Txoj Cai: Kuv=V / R). Lawv nthuav qhia qhov ruaj khov, kwv yees load rau lub transformer.
MR16 LED Teeb:Cov khoom siv hluav taws xob nyuaj. Lawv muaj cov tsav tsheb sab hauv (lub zog me me) uas hloov cov khoom siv hluav taws xob AC (feem ntau 12V AC) mus rau qhov tseeb DC voltage thiab tam sim no xav tau los ntawm LED nti (s). Tus neeg tsav tsheb no nthuav tawm qhov tsis yog -linear, feem ntau capacitive, thauj mus rau lub transformer.
Transformer Hom & Lawv Quirks:
Sib nqus (Toroidal) Transformers:
Lawv ua haujlwm li cas:Ib txwm hlau-cov tub ntxhais hloov pauv uas nqis qis hauv qhov hluav taws xob (piv txwv li, 120V / 230V AC) mus rau qhov tsis tshua muaj hluav taws xob (xws li 12V AC) siv hluav taws xob induction. Yooj yim, muaj zog, txhim khu kev qha.
Compatibility teeb meem nrog LEDs:
Yam tsawg kawg nkaus Load Requirement:Ntau lub tshuab hluav taws xob sib nqus yuav tsum muaj lub zog tsawg kawg nkaus (piv txwv li, 20W, 35W, 50W) ua haujlwm kom raug thiab tswj qhov voltage. Ib qho qis -wattage LED teeb (piv txwv li, 5W) feem ntau poob qis dua qhov tsawg kawg nkaus no.
Hauv qab -Load Effects:Hauv qab qhov tsawg kawg nkaus load, lub transformer tso zis voltage tuaj yeem nce siab tshaj qhov nominal 12V AC. Qhov no overvoltage stresses tus tsav tsheb LED. Lub transformer core kuj tseem vibrate audibly (humming).
Inrush tam sim no:Txawm hais tias feem ntau tsis tshua muaj teeb meem rau cov hlau nplaum ntau dua li cov khoom siv hluav taws xob, qhov muaj peev xwm ntawm qee cov tsav tsheb LED tuaj yeem ua rau muaj kev cuam tshuam loj heev uas cuam tshuam rau cov laus transformers.
Test Compatibility:
Txheeb xyuas Transformer Rating:Txheeb xyuas qhov ntsuas qhov tsawg kawg nkaus thiab qhov siab tshaj plaws (hauv Watts lossis VA - Volt-Amps). Qhov no feem ntau yog luam tawm ntawm daim ntawv lo.
Muab xam tag nrho Load:Sum lub wattage ntawmtag nrhoLED teeb lub transformer yuav muaj zog. Xyuas kom tseeb tias qhov no yog tag nrhosaum toj notransformer haisyam tsawg kawg nkaus loadthiab hauv qab nws qhov siab tshaj plaws load.
Load Resistor Test (yog tias tsis paub):Yog hais tias tus xam load yog ciam teb los yog koj xav tias muaj teeb meem:
Txuas lub teeb LED npaj rau lub transformer.
Ua tib zoo measure the output voltage (AC) with a multimeter under load. If it reads significantly above 12V AC (e.g., >13V AC) nrog tsuas yog cov LEDs txuas nrog, lub nra yuav qis dhau.
Ntxiv ib lub hwj chim resistor (dummy load) nyob rau hauv parallel nrog lub teeb circuit. Xaiv ib tug resistor ntsuas rau lub wattage xav tau los nqa tag nrho cov load saum toj no transformer qhov tsawg kawg nkaus (xws li, ib tug 10W los yog 20W resistor). Xyuas kom nws lub cev ntsuas los tswj cov cua sov kom zoo thiab ua kom zoo.
Re- ntsuas qhov voltage. Nws yuav tsum stabilize ze rau 12V AC. Saib xyuas yog tias flickering nres.
Nco tseg:Ntxiv dummy loads negates qee qhov kev txuag hluav taws xob tab sis tuaj yeem yog ib qho kev daws teeb meem rau kev nyuaj - rau - hloov cov transformers.
Electronic (High{0}}Frequency) Transformers:
Lawv ua haujlwm li cas:Siv cov khoom siv hluav taws xob- xeev cov khoom siv hluav taws xob los txiav lub ntsiab AC rau hauv siab - zaus AC ( kaum tawm kHz), nqis los ntawm ib qho me me ferrite -core transformer, thiab qee zaum kho nws. Me me, sib dua, feem ntau dimmable, thiab ua haujlwm zoo dua li cov hlau nplaumthaum loaded kom raug.
Compatibility teeb meem nrog LEDs:
Yam tsawg kawg nkaus Load Requirement:Muaj ntau lub tshuab hluav taws xob transformers muajtxawm nruj duayam tsawg kawg nkaus load yuav tsum tau sib nqus (xws li, 5W, 10W). Ib qho qis -wattage LED yuav tsis ua raws li qhov no.
Hauv qab -Load Effects:Hauv qab qhov tsawg kawg nkaus load, hluav taws xob transformers yuav:
Flicker:Lub voj voog rau thiab tawm sai sai thaum cov circuits sab hauv pom cov khoom tsis txaus thiab sim rov pib dua.
Buzz/Hum:Lub suab nrov los ntawm qhov siab - zaus hloov kev tawm tsam.
Kaw kom tiav:Tsis kam muab lub hwj chim rau lub teeb.
Tsim Distorted Output:Tsim cov uas tsis yog -sinusoidal waveforms los yog tsis ruaj tsis khov voltage.
Tshaj -Kev tiv thaiv tam sim no:rhiab heev rau lub capacitive inrush tam sim no ntawm LED tsav tsheb, muaj peev xwm ua rau kaw.
Compatibility nrog Driver Topology:Qee lub tshuab hluav taws xob hloov hluav taws xob cia siab tias yuav muaj quasi -resistive load. Highly capacitive LED tsav tsheb tuaj yeem destabilize transformer lub oscillator Circuit Court. Transformers siv "pulse-start" lossis "soft-start" mechanisms tuaj yeem muaj teeb meem tshwj xeeb.
Test Compatibility:
Txheeb xyuas Transformer Specs:Txheeb xyuas qhovmeejYam tsawg kawg nkaus load yuav tsum tau (W los yog VA).
Muab xam tag nrho Load:Xyuas kom LED load tshaj qhov tsawg kawg nkaus.
Kev sim & Kev soj ntsuam (Critical):Qhov no feem ntau yog qhov kev sim ua tau zoo tshaj plaws vim qhov nyuaj ntawm kev sib cuam tshuam:
Nruab lub teeb lub teeb LED npaj.
Saib xyuas tus cwj pwm: tam sim ntawd flickering, buzzing, qeeb pib - nce, los yog tsis ua hauj lwm los ntawm kev qhia tsis tau.
Sim "LED Compatible" Transformers:Yog hais tias lub transformer uas twb muaj lawm ua tsis tau tejyam, hloov nws nrog ib tug qhia meej rated rau LED loads (feem ntau sau npe "LED tsav tsheb" los yog "Constant Voltage"). Cov no feem ntau muaj tsawg heev los yog xoom yam tsawg kawg nkaus load yuav tsum thiab muab ruaj khov 12V AC tso zis.
Oscilloscope (Advanced):Qhov kev ntsuam xyuas meej muaj xws li saib lub transformer cov zis waveform nyob rau hauv load nrog ib tug oscilloscope. Ib tug huv, ruaj khov ~ 12V RMS sine yoj qhia tau hais tias zoo compatibility. Distorted waveforms (square, trapezoidal, spiky) los yog qhov tseem ceeb voltage instability (droop, ripple) qhia incompatibility. Qhov no feem ntau yog dhau ntawm qhov feem ntau ntawm DIYers.
Kev Ntsuas Kev Ntsuas Zoo Tshaj Plaws:
Kuaj Ib Lub Teeb Ua Ntej:Ua ntej cog lus los hloov tag nrho cov halogens hauv ib lub voj voog, sim ua kom sib haum nrog ib lub teeb ci LED ntawm qhov Circuit Court.
Xyuas Teeb Specifications:Saib rau MR16 LEDs qhia meej txog kev sib haum xeeb nrog "magnetic transformers" lossis "electronic transformers." Qee tus yuav qhia qhov tsawg kawg nkaus / siab tshaj VA qhov yuav tsum tau ua.
Xav txog Dedicated LED tsav tsheb:Rau kev txhim kho tshiab lossis cov teeb meem hauv Circuit Court, hloov lub qub transformer nrog ib tug niaj hnub, tswj 12V AC LED tsav tsheb tsim rau qis / tsis muaj qhov tsawg kawg nkaus load yog feem ntau txhim khu kev qha kev daws teeb meem.
Ceev faj ntawm Mixed Loads:Tsis txhob sib xyaw halogen thiab LED teeb ntawm tib lub tshuab hluav taws xob tshwj tsis yog tias muaj kev txheeb xyuas tshwj xeeb, vim tias cov halogens yuav npog ib qho hauv qab -Load condition rau LEDs thaum lawv tawm los yog ua tsis tiav.
Ntu 2:Vim li cas ± 10% Voltage Fluctuation yog LED Killer
Thaum lub 10.8V mus rau 13.2V viav vias (± 10% ntawm 12V) feem ntau suav hais tias yog siv tau rau cov teeb halogen thiab ntau cov khoom siv hluav taws xob, nws ua rau muaj kev pheej hmoo loj rau MR16 LED teeb. Nov yog vim li cas:
LED Driver Input Stage Vulnerability:
Rectification & Smoothing:Tus tsav tsheb LED ua ntej kho cov khoom 12V AC rau DC. Qhov no DC voltage yog kwv yees li 1.414 npaug ntawm AC RMS voltage rho tawm diode poob (Vdc ≈ Vac_rms * √2). Yog li:
Ntawm 10.8V AC: Vdc ≈ 10.8 * 1.414 ≈DC 15.3V
Ntawm 12.0V AC: Vdc ≈ 12.0 * 1.414 ≈DC 17.0V
Ntawm 13.2V AC: Vdc ≈ 13.2 * 1.414 ≈DC 18.7V
Capacitor Stress:Qhov no pulsating DC yog smoothed los ntawm electrolytic capacitors ntawm tus tsav tsheb. Cov capacitors no muaj qhov siab tshaj qhov ntsuas hluav taws xob (WV - Ua Haujlwm Voltage), feem ntau xaiv nrog qhov tsawg kawg nkaus lub taub hau saum toj no.xav tauDC voltage (piv txwv li, 25V capacitors rau nominal 17V DC input). Ua haujlwm tsis tu ncua ntawm 18.7V DC thawb lub capacitor txaus ntshai nyob ze lossis dhau ntawm nws qhov kev txwv WV, ua rau muaj qhov ua tsis tau zoo (tshwj xeeb, bulging, tawg).
Regulator/Converter txwv:Tom qab DC -DC converter theem (piv txwv li, phaw converter) uas powers lub LEDs muaj ib tug txhais input voltage ntau yam . 13.2V AC txhais mus rau ~ 18.7V DC, uas tej zaum yuav tshaj qhov siab tshaj plaws input voltage specification ntawm lub converter IC los yog nws cov khoom txhawb nqa (xws li MOSFETs), ua rau thermal tsis ua hauj lwm tam sim ntawd.
Tsis Siv Neeg Voltage & Flicker:
DC-DC converter theem yuav tsum muaj qhov tsawg kawg nkaus input voltage (V_in_min) saum nws cov zis voltage kom ua haujlwm kom raug. Qhov no yog qhov "dropout voltage."
Ntawm 10.8V AC (~ 15.3V DC), input voltage yuav poobhauv qab notus converter's V_in_min thaum lub sij hawm qhov chaw ntawm lub voj voog AC lossis nyob rau hauv cov xwm txheej ib ntus.
Qhov tshwm sim:Lub converter txiav tawm intermittently, ua rau pomflicker. Qhov no tas li rau / tawm kev caij tsheb kauj vab kuj tseem ceeb rau cov khoom siv thermally.
Thermal Stress & Premature Aging:
Tshaj tawm voltage (13.2V AC / ~ 18.7V DC):Tshaj voltage yuav tsum tau dissipated raws li cua sov los ntawm tus neeg tsav tsheb txoj cai circuitry. Fais fab dissipation (P_loss) nce roughly nrog lub square ntawm overvoltage. Qhov no tseem ceeb nce qhov kub thiab txias.
Lub zog hluav taws xob (10.8V AC / ~ 15.3V DC):Thaum tsis tshua muaj kev puas tsuaj tam sim ntawd, nws yuam kom lub converter ua haujlwm hnyav dua los tswj cov LED tam sim no uas yuav tsum tau muaj, uas tuaj yeem ua rau poob thiab qhov kub thiab txias yog tias ua haujlwm ze ntawm nws qhov kev tso tseg.
Cov nyhuv:Kev kub siab ua kom nrawm nrawm ntawm tag nrho cov khoom siv hluav taws xob - electrolytic capacitors (qhuav tawm), semiconductors (ua kom cov pa tawm tam sim no, thermal runaway), solder pob qij txha ( qaug zog). Txhua 10℃nce siab tshaj qhov ntsuas qhov ntsuas tauib nrabnws qhov kev cia siab lifespan. Cov neeg tsav tsheb tsis ua haujlwm ntxov ntxov yog qhov tshwm sim tshwm sim.
Kev sib tham nrog Incompatible Transformers:
Raws li tau tham, cov transformers tsis sib xws (tshwj xeeb tshaj yog nyob rau hauv -loaded magnetics lossis tsis ruaj khov electronics) yoglawv tus kheejNws yooj yim rau outputting voltages sab nraum 10.8V-13.2V ntau yam. Ib qho hluav taws xob qis qis yuav yooj yim tso tawm 14V AC lossis ntau dua. Ib qho hluav taws xob hloov hluav taws xob tawm tsam yuav ua rau muaj qhov tsis zoo los yog poob tawm. Qhov no suav nrog qhov teeb meem kev nyuaj siab voltage heev.
Xaus: Navigating Retrofit Successful
Retrofitting MR16 halogens nrog LEDs xav tau kev saib xyuas zoo ntawm cov txheej txheem uas twb muaj lawm, feem ntau cov transformers. Kev ntsuam xyuas suav nrog kev nkag siab txog hom transformer (sib nqus vs. electronic), txheeb xyuas qhov kev xav tau yam tsawg kawg nkaus, thiab kev soj ntsuam zoo rau flicker lossis tsis ruaj khov. Hloov incompatible transformers nrog rau siab LED tsav tsheb yog feem ntau yog ib tug robust kev daws teeb meem.
Qhov yooj yim rau seemingly me me ± 10% voltage fluctuations stems los ntawm LED tsav tsheb intricate electronics. Overvoltage stresses capacitor thiab regulators, uas ua rau muaj kev puas tsuaj loj. Undervoltage ua rau flicker thiab thermal stress los ntawm converter dropout. Ob qho tag nrho ua rau muaj kev laus zuj zus vim muaj cua sov ntau dhau. Qhov rhiab heev no yog qhov sib txawv ntawm qhov ua tau zoo ntawm cov halogen filaments yooj yim.
Success hinges rau:
Matching lub Load:Xyuas kom lub transformer pom ib tug txaus thiab haum load.
Stable voltage:Muab ib qho huv, tswj 12V AC mov nyob rau hauv nruj tolerances.
Xaiv Lub Teeb Zoo:Xaiv MR16 LEDs tsim rau kev sib raug zoo nrog ntau hom transformer thiab nrog cov neeg tsav tsheb ruaj khov tsim ua siab ntev ntawm kev hloov pauv me me.
