Tus naj npawb ntawm LED chaw ntau pob teeb uas xav tau rau kev ncaws pob yog nyob ntawm ntau yam, suav nrog thaj chaw loj, qib kev ua si (xws li, kev cob qhia, kev pib ua haujlwm, kev tshaj lij, lossis tshaj tawm), yuav tsum muaj teeb pom kev zoo ( ntsuas hauv lux), thiab cov teeb pom kev tshwj xeeb thiab cov khoom siv siv. Nov yog kev sib txuas ntawm cov ntaub ntawv los ntawm kev tshawb fawb:
Yam tseem ceeb cuam tshuam rau tus naj npawb ntawm lub teeb:
Teb Loj:
Standard 11-a-sab ncaws pob: Feem ntau100-110 mntev thiab64-75 mdav.
Cov teb me me (piv txwv li, 5-a-sab lossis 7-a-sab) yuav tsum muaj teeb pom kev tsawg dua.
Qib Kev Ua Si thiab Kev Teeb Pom Kev Zoo:
Illuminance yuav tsum tau sib txawv raws li theem ntawm kev ua si:
Kev cob qhia thiab kev ua si lom zem: 200 lux
Amateur ntais ntawv: 500 lux
Kev sib tw ua haujlwm:750 ua
General TV tshaj tawm: 1,000 lux
High-txhais TV tshaj tawm rau kev sib tw loj thoob ntiaj teb: 1,400 lux lossis siab dua
TV tshaj tawm xwm ceev:750 ua
Teeb pom kev zoo tsim thiab Fixture Specifications:

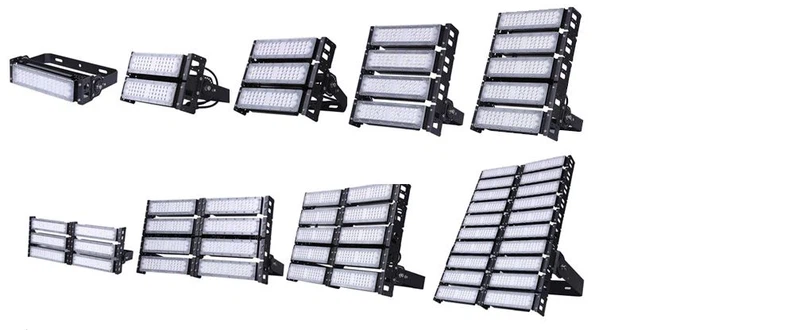

Wattage thiab efficiency: LED fixtures feem ntau muaj los ntawm240W rau 1,200W, nrog siab dua -wattage fixtures npog thaj tsam loj.
Lub teeb faib: Tus tsim (xws li, ncej qhov siab, qhov chaw, thiab tus naj npawb ntawm fixtures ib tug ncej) muaj feem xyuam rau kev pab them nqi thiab uniformity.
Ncej qhov siab thiab kev npaj:
Rau 11-ib sab teb, ncej qhov siab feem ntau yog li ntawm 15m txog 25m.
Cov kev npaj muaj xws li:
Plaub- kaum qhov chaw: 4 tus ncej nrog ntau yam khoom siv rau ib tus ncej.
Rau -ncej qhov chaw: 6 tus ncej nyob rau sab ntawm daim teb (piv txwv li, 3 ib sab).
Yim-ncej qhov chaw: 8 ncej nyob ib ncig ntawm lub teb kom siab dua uniformity 67.
Kwv yees ntau npaum li cas rau 11-A-Side Soccer Field:
Raws li cov txiaj ntsig tshawb fawb, ntawm no yog qee qhov piv txwv zoo:
Kev cob qhia / Kev Siv Ua Si (200 lux):
Piv txwv li: 84 units ntawm 300W LED fixtures (eg, BENWEI LED chaw ntau pob teeb) ntsia rau ntawm 6 ncej (14 fixtures ib tug ncej), tag nrho 25,200W, ua tiav ~ 200 lux 1.
Amateur Matches (500 lux):
Piv txwv li: ~ 112 units ntawm 1,000W LED fixtures rau ib daim teb nrog lem (170m x 90m) 2.
Siab -Txhais TV tshaj tawm (1,400–1,700 lux):
Piv txwv li: ~ 208 units ntawm 1,000W LED fixtures rau 110m x 68m teb .
Lwm yam Configurations:
for a standard football field (105m x 74m) specified 84 units of ≥240W LED lights (total ≥20,160W) to achieve >125 lux nruab nrab illuminance.
Cov lus qhia dav dav:
Cov teb me me:
5-a-sab teb (~38–42m x 18–22m): Feem ntau 6–8m ncej nrog tsawg fixtures .
7-a-sab teb (~65–68m x 45–48m): 12–15m ncej nrog nruab nrab fixtures .
Kev txiav txim siab zoo:
LED fixtures nrog kev ua tau zoo dua (xws li, Ntau dua lossis sib npaug ntawm 160 lm / W) tuaj yeem txo cov khoom siv uas xav tau.
Tsim software (piv txwv li, DIALux) feem ntau yog siv los simulate thiab optimize cov phiaj xwm teeb pom kev zoo.
Cov lus xaus rau 11-A-Side Field:
| Siv Case | Lub hom phiaj Lux | Kwv yees LED Fixture suav | Fixture Power | Tag Nrho Lub Zog | Ncej Kev Npaj | Qhov chaw |
|---|---|---|---|---|---|---|
| Kev cob qhia/kev ua si | 200 | 84 | 300W | 25,200W | 6 tus ncej (14 / ncej) | 1 |
| Amateur Matches | 500 | ~112 | 1,000W | ~112,000W | Tsis tau teev tseg | 2 |
| HD TV tshaj tawm | 1,700 | ~208 | 1,000W | ~208,000W | Tsis tau teev tseg | 2 |
| Kev tshaj tawm dav dav | 1,000 | Ntau yam | 600–1,200W | Ntau yam | 4-8 pin | 6 |
Tham nrog cov kws tshaj lij: Kev tsim teeb pom kev zoo yuav tsum ua raws li cov qauv (xws li FIFA, IES, lossis cov cai hauv zos) thiab siv cov cuab yeej simulation 26.
Xav txog Fixture Quality: High- LEDs zoo nrog cov khoom siv kho qhov muag (xws li, kev tswj cov kab ncaj nraim, txo qhov ci ntsa iab) tuaj yeem txhim kho kev ua tau zoo thiab txo kom muaj nuj nqis 26.
Kev tu thiab Flexibility: Xaiv cov khoom siv nrog lub neej ntev (piv txwv li, 50,000 teev) thiab cov kev xaiv rau dimming lossis zoning rau cov xwm txheej sib txawv 16.
Rau qhov kev kwv yees meej, muab qhov loj me me thiab xav siv, thiab sab laj tus tsim teeb pom kev zoo lossis siv software simulations.
