Ua li caspeb -Xim Dimmable LED Lub TeebUa hauj lwm?

Taw qhia

Peb -xim dimmable LED qhov muag teev (tseem hu uatri-xim los yog tunable dawb qhov muag teev) tso cai rau cov neeg siv hloov pauv ntawm qhov sib txawv xim kub (CCT) thiab kho qhov ci ci. Cov qij no nrov rau lawv ntau yam hauv tsev, chaw ua haujlwm, thiab teeb pom kev lag luam. Tab sis lawv ua haujlwm raws nraim li cas?

Kab lus no piav txog qhovtechnology qab peb -xim dimmable qhov muag teev, suav nrog lawv cov khoom siv sab hauv, cov txheej txheem tswj, thiab kev siv tswv yim.

1. Sab hauv Cheebtsam ntawm peb -Color Dimmable Bulb

Lub tri- xim LED teeb muaj ob peb yam tseem ceeb uas ua kom muaj xim thiab qhov ci ci:

A. Ntau LED Chips (Tsib Xim Kub Kub)

Dawb (2700K-3000K)- Mimics incandescent teeb, zoo tagnrho rau kev so ib puag ncig.

Neutral Dawb (4000K-4500K)- Ntsuas lub teeb rau qhov chaw ua haujlwm.

Txias Dawb (5000K-6500K)- Hnub ci ci- zoo li teeb pom kev zoo rau kev ua haujlwm teeb pom kev zoo.

Cov LEDs no yog ob qho:

cais diodes(txhua qhov emitting CCT ruaj)

Tunable LEDs(siv phosphor-cov chips coated uas hloov xim)

B. LED Tsav Tsheb & Tswj Circuit Court

Tswj lub zog rau cov LEDs.

Enables dimming ntawmPWM (Pulse Width Modulation)los yogtxo tam sim no.

Hauv cov qij ntse, suav nrog aWi-Fi/Zigbee/Bluetoothmodule rau wireless tswj.

C. Hloov tshuab

Kev tuav tswj: Siv phab ntsa hloov (toggle mus rau lub voj voog hom).

Chaw taws teeb / APP tswj: Kho ntawm lub xov tooj smartphone lossis lub suab hais lus (Alexa / Google Tsev).

2. Xim Hloov ua haujlwm li cas

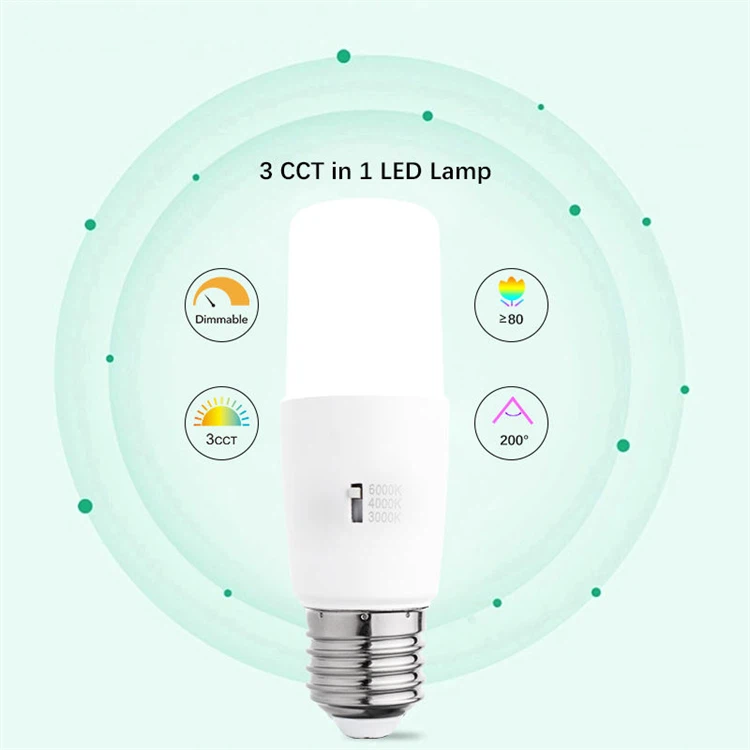

Kev Xaiv 1: Tsau CCT Hloov (3-hauv-1 Teeb)

Lub teeb muajpeb cais LED circuits(sov / nruab nrab / txias).

Txhua zaus koj tig qhov hloovon/off sai sai, nws cycles mus rau hom tom ntej:

1st nias: Dawb (3000K)

2nd nias: Tsis yog Dawb (4000K)

3rd nias: Txias Dawb (6000K)

4th nias: Rov qab mus rau Dawb

Kev xaiv 2: Nruam Tunable Dawb (Smart Bulbs)

Sivsib xyaw LED channels(sov + txias dawb).

Tus neeg tsav tsheb kho covzog pivnruab nrab ntawm lawv, tso cai rau kev hloov pauv (piv txwv li, los ntawm 2700K txog 6500K).

Tswj los ntawmAPP, tej thaj chaw deb, lossis lub suab hais kom ua.

3. Yuav ua li cas Dimming ua hauj lwm nyob rau hauv peb -Color Bulbs

Dimmability nyob ntawm qhovtsav tsheb technology:

A. Leading-Edge (TRIAC) Dimming

Tau tshaj cov tsoos phab ntsa dimmers.

Tej zaum yuav ua rau flickering yog tias lub teeb thiab dimmer tsis sib haum.

B. Trailing-Edge (ELV) Dimming

Smoother dimming, zoo dua rau LEDs.

Yuav tsum tau sib xws dimmer keyboards.

C. Ntse Dimming (PWM lossis Wireless Control)

SivPulse Width Modulationrau flicker - dawb dimming.

Tso cai0-100% brightnesskev hloov kho ntawm APP.

4. Daim ntawv thov ntawm Peb -Color Dimmable Bulbs

5. Tej teeb meem & kev daws teeb meem

Teeb meem 1: Lub teeb tsis hloov xim

Ua rau: Kev hloov pauv tsis raug.

Kho: Tig / tawm hauv2 vib nas thismus rau lub voj voog hom.

Teeb meem 2: Flickering Thaum Dimmed

Ua rau: Incompatible dimmer.

Kho: Siv ibLED-compatible dimmer(eg, Lutron).

Teeb meem 3: Ntse Teeb Tsis Teb

Ua rau: Wi-Fi/Zigbee cuam tshuam.

Kho: Pib dua lub teeb thiab rov txuas dua.

6. Yav tom ntej Trends

Circadian Teeb pom kev zoo: Auto- kho CCT raws li lub sijhawm ntawm hnub.

Siab dua CRI (Ntau dua lossis sib npaug rau 95): Cov xim zoo dua rau cov duab kos duab thiab cov khw muag khoom.

Teeb meem raws tu qauv: Txhim kho kev sib koom ua ke hauv tsev ntse.

Xaus

Peb -xim dimmable LED qhov muag teev ua haujlwm los ntawm kev sib txuasntau LED chips(sov / nruab nrab / txias) nrog antse tsav tshebuas tso cai rau hloov thiab dimming. Lawv muab kev yooj yim rau kev xav tau teeb pom kev sib txawv, txij li yav tsaus ntuj mus rau qhov chaw ua haujlwm tau zoo.

Cov ntsiab lus tseem ceeb:
✔ Tsau CCT qhov muag teevlub voj voog hom ntawm kev hloov.
✔ Ntse tunable qhov muag teevtso cai rau kev hloov pauv ntawm APP.
✔ Dimmabilitynyob ntawm tus tsav tsheb compatibility.
✔ Zoo tshaj rautsev, chaw ua haujlwm, thiab chaw ua lag luam.
