High CRI, High Lumens, thiab Tag Nrho Spectrum: LED teeb pom kev zoo puas muaj tag nrho?
Hauv kev txhim kho thiab kev qhia tshwj xeeb ntawm cov khoom siv teeb pom kev zoo LED, engineers, designers, thiab kev txiav txim siab yuav khoom-cov neeg tsim khoom nquag ntsib qhov teeb meem tseem ceeb: vim li cas nws nyuaj heev kom nrhiav tau lub teeb ci LED uas ib txhij muajHigh xim rendering Performance index (CRI), exceptionally siab luminous efficiency, thiab atiav, nruam spectrum? Qhov kev lag luam tawm no -tawm tsis yog qhov xwm txheej tab sis tau hais los ntawm cov cai tseem ceeb ntawm physics, cov kev txwv hauv cov khoom siv tshawb fawb, thiab kev tsis sib haum xeeb hauv photoelectric conversion efficiency. Nkag siab qhov "hlau daim duab peb sab" ntawm kev ua tau zoo yog qhov tseem ceeb rau kev xaiv qhov tsim nyogsiab CRI LED daws teeb meemrau cov ntawv tshwj xeeb xws li teeb pom kev kho mob, siab-kawg muag khoom, thiab teeb pom kev hauv tsev cia puav pheej.
Sib piv kev soj ntsuam ntawm Inherent Technical Conflicts
Cov lus hauv qab no qhia meej meej txog kev txi thiab kev cuam tshuam uas yuav tsum tau ua thaum thawb ib qho kev ntsuas kev ua tau zoo rau nws qhov txwv.
| Lub Hom Phiaj Ua Haujlwm Tseem Ceeb | Qhov cuam tshuam rau xim Rendering Index (CRI, Ra) | Qhov cuam tshuam rau Luminous Efficacy (lm / W) | Kev cuam tshuam rau Spectral Continuity | Tej yam kev thov Scenarios |
|---|---|---|---|---|
| Maximum Luminous Efficacy (>200lm / W) | Feem ntau qis (Ra 70-80). Siv tau zoo heev tab sis spectrally nqaim phosphors, feem ntau tsis txaus nyob rau hauv liab wavelengths. | Lub Hom Phiaj Ua tiav. Optimizes hloov dua siab tshiab ntawm hluav taws xob hluav taws xob mus rau pom lub teeb, txo thermal poob. | pluag. Spectrum feem ntau qhia tau hais tias "lub hav" hauv thaj tsam 580-630nm (daj-liab). | Txoj kev teeb pom kev zoo, dav dav teeb pom kev lag luam, teeb pom kev hauv tsev. |
| Ultra-High Color Rendering (Ra >95, R9 >90) | Lub Hom Phiaj Ua tiav. Siv ntau-phosphor los yog quantum dot sib xyaw kom sau cov spectral tseem ceeb, tshwj xeeb tshaj yog liab liab (R9). | Kev txo qis heev (tej zaum yuav poob mus rau 80-100 lm/W). Tsim cov duab ntev-yoj liab photons cuam tshuam nrog "Stokes hloov" lub zog poob thaum tshav kub. | Zoo heev. Spectrum ze ze ntawm nruab hnub nrig nrog cim txuas ntxiv. | Cov chav ua yeeb yam, chav ua haujlwm phais, tshuaj xyuas textile, siab -kawg muag khoom. |
| Zoo tagnrho Full Spectrum (Daylight Simulation) | Siab heev (ze 100). Spectral tiav yog lub hauv paus ntawm lub cev rau cov xim zoo meej. | Tsawg tshaj plaws (tej zaum yuav qis dua 80 lm / W). Npog UV / violet thiab sib sib zog nqus liab yuav tsum muaj ntau-chip lossis tshwj xeeb phosphor systems nrog qhov ua tau zoo tag nrho. | Lub Hom Phiaj Ua tiav. Spectrum yog du thiab tsis tu ncua, ze ze mimicing hnub ci hluav taws xob. | Xim txuam labs, phototherapy, advanced cog kev loj hlob kev tshawb fawb. |
| Kev lag luam Balanced Solution | Good (Ra 80-90, R9 >50). Tus nqi -kev ua haujlwm tsis zoo. | Zoo (130-160 lm/W). Lub hauv paus kev lag luam ntau yam rau cov khoom siv ua haujlwm siab. | Ncaj ncees. Txuas ntxiv nyob rau hauv cov cheeb tsam tseem ceeb pom tab sis nrog lub ncov xiav thiab tsis muaj zog tob liab. | Chaw ua haujlwm, chav kawm, chaw lag luam, chaw nyob zoo. |
Nco tseg: Cov ntaub ntawv tsim los ntawm pej xeem kev ua tau zoo nkhaus ntawm cov neeg muag khoom loj LED ntim khoom (piv txwv li, Cree, Lumileds, Seoul Semiconductor) thiab cov ntawv tshaj tawm kev lag luam.
Technical Deep Dive: Vim li cas "Muaj Txhua Yam" tseem yog qhov kev sib tw
1. Kev txwv lub cev tseem ceeb: Stokes ua haujlwm thiab poob zog
Lub hauv paus ntawm dawb LED emission yogkev hloov pauv phosphor. Lub xiav LED nti ua rau muaj phosphors, uas tom qab ntawd tawm ntev dua - lub teeb wavelength. Cov txheej txheem no inherently koom nrogStokes Hloov: lub emission photon muaj qis zog tshaj lub zoo siab photon, nrog rau lub zog ploj dissipated li tshav kub.
Kev cuam tshuam rau kev ua tau zoo: Ntxiv rau qhov liab ntawm lub spectrum (ntev wavelength, qis zog tshaj) yuav tsum muaj qhov loj tshaj plaws Stokes hloov, ua rau lub zog siab tshaj plaws. Qhov no ncaj qha ua rau ib qho tseem ceeb poob rau hauv kev ua tau zoo ntawmtag nrho spectrum LED teeb qhov chawnrog CRI siab.
Kev tsis sib haum xeeb: Kev ua kom muaj txiaj ntsig zoo tshaj plaws xav kom txo qis zog los ntawm kev siv phosphors uas tawm lub teeb ze rau lub teeb xiav (xws li ntsuab- daj). Hauv qhov sib piv, ua tiav CRI siab thiab tag nrho cov spectrum yuav tsum tau ntxiv qhov deb - liab spectrum, lees txais ntau dua lub zog poob.
2. Qhov Kev Sib Tw ntawm Cov Khoom Siv Hluav Taws Xob: Phosphor System Trade- tawm
Ua kom tau txais txiaj ntsig zoo yog nyob ntawm ob peb homua tau zoo heevnqaim-band phosphors, xws li YAG:Ce³⁺ (Cerium-doped Yttrium Aluminium Garnet). Nws zoo hloov lub teeb xiav rau hauv lub teeb daj dav, uas sib xyaw nrog cov xiav ntxiv los ua lub teeb dawb. Txawm li cas los xij, qhov spectrum no muaj qhov tsis txaus hauv cov xim liab thiab xiav -cov khoom ntsuab, ua rau tsis zoo CRI, tshwj xeeb yog qis heev.R9 (liab liab)tus nqi.
Kev nce qib hauvsiab CRI LED daws teeb meemnyob ntawm kev koom ua kenitride los yog fluoride liab phosphor. Cov ntaub ntawv no feem ntau muaj cov tshuaj lom neeg ruaj khov thiab luminous efficiency piv rau YAG phosphors. Tsis tas li ntawd, lawv cov excitation spectra feem ntau imperfectly match lub emission peak ntawm xiav LED, ntxiv txo tag nrho cov kev ua tau zoo.
Kev paubtag nrho spectrum LED teeb qhov chawtej zaum yuav xav tau ntxiv cyan-ntsuab, lossis txawm tias ultraviolet/violet phosphors lossis chips, tsim kom muaj ntau yam - ncov spectrum. Multi-phosphor systems raug kev txom nyem los ntawmre-absorption- lub teeb tawm los ntawm ib qho phosphor tuaj yeem nqus tau los ntawm lwm qhov - ua rau kev poob qis dua thiab txo qis kev ua tau zoo dua.
3. Qhov kawg lub raj mis: Thermal Management
LED kev ua tau zoo yog intimately txuas rau hlws ris kub. Kev hloov pauv liab tsis muaj txiaj ntsig tau qhia kom ua tiav siab CRI thiab tag nrho cov spectrum ua kom muaj cua sov ntau dua. Qhov kub thiab txias, nyob rau hauv lem, ua rau:
Phosphor Thermal Quenching: Luminous efficiency txo qis thaum kub nce.
Chip Efficiency Degradation: Kev ua haujlwm ntawm xiav LED nti nws tus kheej kuj poob.
Wavelength ua haujlwm: Ua rau xim drift, cuam tshuam xim rendering stability.
Yog li ntawd, tsimsiab luminous efficiency LEDmodules nrog siab CRI yuav tsum muaj qhov nyuaj heev thiab raug nqi thermal tswj tshuab, nce qhov loj me, tus nqi, thiab tsim complexity.
Cov lus nug nquag nug (FAQ)
Q1: Vim li cas thiaj muaj cov khoom lag luam muaj "siab-CRI" LED qhov muag teev feem ntau muaj cov lumen qis dua li cov qauv LEDs ntawm tib lub zog?
A1: Qhov no yog qhov qhia ncaj qha ntawm kev lag luam kev lag luam -tawm piav qhia. Siab -CRI cov khoom siv hluav taws xob ntau dua los ua "tsis muaj txiaj ntsig" tsim cov photons xav tau los ua kom tiav cov spectrum (tshwj xeeb yog liab), es tsis ua kom tag nrho cov teeb pom kev zoo. Yog li, 10W, Ra95 noob yuav tsim tau 800 lumens xwb, thaum lub 10W, Ra80 noob tuaj yeem tshaj 1000 lumens.
Q2: Puas yog "tag nrho spectrum" LEDs noj qab nyob zoo rau lub qhov muag? Puas yog lawv zoo dua li siab -CRI LEDs?
A2: "Full spectrum" feem ntau yog hais txog cov duab spectral ze ze rau lub teeb ntuj, suav nrog luv luv - wavelength xiav lub teeb thiab txawm tias me me ntawm UV / IR. Raws li txoj cai, nws tuaj yeem pab tswj cov circadian rhythms thiab txo qhov pom kev qaug zog. Txawm li cas los xij, "kev noj qab haus huv" yog lub tswv yim sib xyaw nrogSpectral Power Distribution, xiav lub teeb phom sij hnyav, flicker, thiab lwm yam kev ntsuas. Tag nrho spectrum yog qhovlub hauv pauskom ua tiav qhov kawg xim fidelity thiab circadian zoo- yog, tab sis nws tsis xav tau nyob rau hauv tag nrho cov xwm txheej. Piv txwv li, ib tug tsim studio xav kom meejsiab CRI LED daws teeb meem, thaum lub chaw ua haujlwm tau tsom mus rau qhov zoo- ua tau tuaj yeem ua qhov tseem ceeb circadian- tus phooj ywg puv - spectrum tsim.
Q3: Puas muaj txoj hauv kev thev naus laus zis uas tuaj yeem rhuav tshem "trilemma" no?
A3: Ntau cov lus qhia tau raug tshawb nrhiav:
Laser -Zoo siab phosphors: Siv laser diodes kom excite tej thaj chaw deb phosphor daim hlau tuaj yeem tiv taus lub zog ntau dua thiab kub, muaj peev xwm ua kom muaj txiaj ntsig zoo dua thaum tswj kev ua haujlwm siab.
Quantum Dot Technology: Quantum dot phosphors muab qhov nqaim emission bands thiab qhov tseeb ntawm cov wavelengths tunable, tso cai kom muaj txiaj ntsig ntau ntxiv ntawm cov spectral tshwj xeeb nrog txo qis re-kev nqus poob. Qhov no yog ib txoj hauv kev zoo rau kev txhim kho xim rendering ntawm kev ua tau zoo.
Multi-Chip/Multi-Spectrum LEDs: Kev sib xyaw xim liab, ntsuab, xiav, thiab xiav LED chips ncaj qha los ua lub teeb dawb kom tsis txhob muaj phosphor hloov pauv. Qhov no tuaj yeem ua tau raws li kev ua tau zoo thiab kev ua haujlwm siab CRI tab sis ntsib cov teeb meem hauv kev nyuaj, tus nqi siab, thiab xim ruaj khov.
Q4: Yuav ua li cas qhov tseem ceeb yuav raug txiav txim siab thaum xaiv cov khoom rau cov ntawv thov sib txawv?
A4: Ua raws li cov cai no:
Xim Accuracy Paramount(Tsev khaws puav pheej, luam ntawv, kuaj mob):Ua ntej CRI ntsuas (Ra, R9, Rf)kiag li. Txais kev txo qis hauv kev ua tau zoo thiab tus nqi siab dua.
Efficiency & Nqi Paramount(General teeb pom kev zoo, infrastructure):Ua ntej luminous efficiency. Xaiv cov khoom sib npaug nrog Ra nyob ib ncig ntawm 80.
Zoo-zoo & Ambiance(High-cov chaw ua haujlwm kawg, tsev kawm ntawv, kev kho mob): Ua kom pom tseebspectral txuas ntxiv, circadian metrics, thiabtag nrho spectrum LED teeb qhov chaw properties. Efficacy and CRI should reach a good balance (e.g., Ra>90, Efficacy>120 lm/W).
Q5: Yuav ua li cas yuav tsum txhais cov ntaub ntawv cuam tshuam hauv cov ntaub ntawv cov khoom?

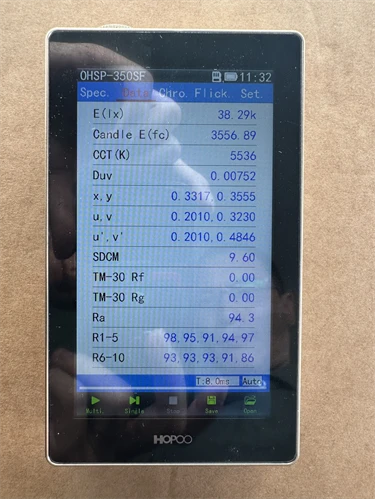

A5: Nco ntsoov sab laj cov ncauj lus kom ntxawsSpectral Power Distribution (SPD)graph, tsis yog tus lej Ra. Ua tib zoo mloog rau:
CRI (Ra): Tus nqi nruab nrab.
Tshwj xeeb xim Rendering Index R9: Saturated liab, tseem ceeb rau daim tawv nqaij tones, zaub mov, thiab lwm yam.
Luminous Efficiency (lm/W): Sib piv raws li CCT thiab CRI zoo ib yam.
TM-30 Metrics (Rf, Rg): Ntau niaj hnub ntsuas ntawm xim fidelity thiab gamut.
Cov ntaub ntawv zoo - cov ntaub ntawv zoo rau cov khoom lag luam zoo yuav muab cov ntaub ntawv tiav thiab SPD graphs.
Xaus
Lub simultaneous achievements ntawmsiab CRI, siab lumen tso zis, thiab tag nrho spectrumnyob rau hauv LED teeb pom kev zoo tseem txwv los ntawm cov cai ntawm lub cev thiab cov khoom siv technology tam sim no. Qhov no tsis yog qhov tsis txaus ntseeg tab sis yog qhov tshwm sim ntawm kev txhim kho tshwj xeeb uas tau tsav los ntawm ntau yam kev xav tau ntawm daim ntawv thov. Rau B2B cov neeg siv khoom, tus yuam sij yog tso tseg qhov kev xav ntawm "kev ntsuas zoo meej" thiab koom nrogkev txheeb xyuas meej: txheeb xyuas qhov tseem ceeb ntawm kev ua haujlwm kho qhov muag xav tau ntawm daim ntawv thov, nkag siab txog kev lag luam - tawm tom qab cov kev daws teeb meem sib txawv, thiab xaiv qhov tsim nyog tshaj plawssiab luminous efficiency LEDlos yogsiab CRI tag nrho spectrum khoom. Txawm hais tias cov ciam teb ntawm "daim duab peb sab tsis tuaj yeem" txuas ntxiv raug thawb los ntawm cov ntaub ntawv tshiab thiab thev naus laus zis, kev paub txog kev lag luam tawm -offs tseem nyob, rau tam sim no, lub ntsiab lus ntawm kev tsim teeb pom kev zoo.
Sau ntawv & Qhov chaw
Lub physics ntawm Stokes hloov thiab lub zog hloov dua siab tshiab tau hais txog hauv tus qauvSemiconductor PhysicsCov ntawv thiab cov ntawv tshaj tawm los ntawm Optical Society of America (OSA).
Phosphor kev ua tau zoo cov ntaub ntawv (YAG vs. Nitride liab phosphors) yog synthesized los ntawm covPhau ntawv Journal of Luminescencethiab International Commission on Illumination (CIE) technical report CIE 225: 2017.
Kev lag luam tawm -kev sib raug zoo ntawm LED kev ua tau zoo, CRI, thiab spectrum raug tshuaj xyuas hauv US Department of Energy (DOE) Khoom-Lub Xeev Teeb Pom Kev R&D Plan ntau- cov ntawv tshaj tawm txhua xyoo.
Qhov cuam tshuam ntawm thermal tswj ntawm LED kev ua tau zoo yog raws li kev tshawb fawb hauvIEEE Kev Lag Luam ntawm Electron Deviceshais txog LED kev ntseeg tau thiab thermal tsom xam.
Kev soj ntsuam ntawm kev txiav- thev naus laus zis (laser teeb pom kev zoo, quantum dots) hais txog cov lus tshuaj xyuas tsis ntev los no hauv cov ntawv xov xwm xws liNtuj PhotonicsthiabKhoom siv Advanced.
