DALI Teeb pom kev zoo: Daim ntawv qhia ua tiav
DALI (Digital Addressable Lighting Interface) sawv cev rau kev nce qib tseem ceeb hauv kev tswj teeb pom kev zoo. Raws li kev qhib, cov chaw tsim khoom- tus qauv ywj pheej, nws muab cov kev tswj hwm digital zoo tshaj plaws thaum tswj kev teeb tsa ncaj qha thiab teeb tsa. Cov txheej txheem no tau dhau los ua qhov kev xaiv zoo tshaj plaws rau cov chaw lag luam, chaw tos txais qhua, thiab cov phiaj xwm loj hauv tsev nrhiav kev daws teeb meem ntse.
Nkag siab txog DALI Technology
DALI yog ob-txoj kev sib txuas lus digital raws tu qauv tsim tshwj xeeb rau kev tswj cov teeb pom kev zoo hauv lub tsev automation. Tsis zoo li ib txwm ib txwm muaj - txoj kev tswj hwm txoj kev, DALI ua kom muaj kev sib txuas lus bidirectional ntawm cov tswj thiab cov khoom siv teeb pom kev zoo. Qhov no tso cai rau tsis yog xa cov lus txib xwb tab sis kuj tau txais cov xwm txheej hloov tshiab thiab cov ntaub ntawv kuaj mob los ntawm txhua qhov kev sib txuas.
Cov txheej txheem pib los ntawm kev txhim kho rau Tridonic's Digital Serial Interface thiab tau hloov mus rau hauv tus qauv thoob ntiaj teb (IEC 62386), ua kom muaj kev sib raug zoo thoob plaws cov tuam txhab thiab yav tom ntej - pov thawj kev teeb tsa.
Qhov tseem ceeb ntawm DALI Systems
Tsis sib haum Flexibility
DALI's addressable architecture tso cai rau ib tug neeg tswj txog li 64 li ntawm ib lub tsheb npav. Teeb pom kev zoo pab pawg thiab scenes tuaj yeem kho dua tshiab los ntawm software yam tsis muaj lub cev rov ua dua tshiab, ua rau nws zoo tagnrho rau qhov chaw uas yuav tsum tau hloov pauv.
Yooj yim Installation
Cov txheej txheem ob -wire bus system tshem tawm cov kab teeb tsa nyuaj. Cov neeg tsim khoom tsis tas yuav paub qhov teeb pom kev zoo kawg thaum lub sijhawm teeb tsa, vim hais tias kev hais lus thiab pab pawg raug tswj hwm digitally tom qab kev teeb tsa lub cev.
Qhib Standard Compatibility
Raws li tus neeg muag khoom- nruab nrab raws tu qauv, DALI ua kom muaj kev sib cuam tshuam ntawm cov khoom sib txawv ntawm cov tuam txhab sib txawv. Qhov no tiv thaiv tus neeg muag khoom xauv- nyob rau hauv thiab muab kev nkag mus rau cov nqi sib tw thaum tswj kev ua haujlwm ncaj ncees.
Comprehensive Monitoring thiab Control
Cov neeg saib xyuas qhov chaw tau txais txiaj ntsig los ntawm qhov tiag - lub sijhawm saib xyuas cov khoom siv ntawm tus kheej, ua kom muaj kev saib xyuas kev kwv yees thiab kev txheeb xyuas qhov yuam kev sai. Kev siv hluav taws xob taug qab thiab cov teeb pom kev siv hluav taws xob tsis siv neeg txuas ntxiv txhim kho kev ua haujlwm zoo.
Scalable Architecture
Los ntawm ib qho -chav kev teeb tsa mus rau ntau- lub tsev complexes, DALI ntsuas qhov tsis muaj zog. Ntau lub tsheb npav DALI tuaj yeem sib koom ua ke los tsim cov kev tswj xyuas teeb pom kev zoo rau txhua qhov kev ua haujlwm.
System Cheebtsam thiab Architecture
DALI Bus Structure
Lub nraub qaum ntawm ib qho kev teeb tsa DALI yog nws ob lub - lub tsheb npav, nqa ob lub zog thiab kev sib txuas lus digital. Qhov no tsawg -voltage bus txuas tag nrho cov kab ke:
Tswj iav (LED tsav tsheb, ballasts)
Cov khoom siv nkag (sensors, keyboards)
Application controllers
Qhov Chaw Nyob
Txhua lub cuab yeej ntawm lub npav DALI tau txais qhov chaw nyob tshwj xeeb (1-64), thaum pab pawg tuaj yeem txhais tau los tswj ntau yam khoom siv ib txhij. Cov lus txib tshaj tawm tuaj yeem hais txog txhua yam khoom siv ntawm lub npav thaum xav tau.
Tswj kev xaiv
DALI txhawb ntau hom kev tswj xyuas interfaces:
Phab ntsa-mounted dimmers thiab keyboards
Nyob thiab nruab hnub nrig sensors
Centralized tswj software
Kev koom ua ke nrog lub tsev automation systems
Mobile thiab web -raws li interfaces
Installation thiab Configuration
Kev Siv Hluav Taws Xob
Ob -wire bus topology txo qis kev teeb tsa yooj yim piv rau cov qauv teeb pom kev zoo. Tus qauv qis-voltage cable khiav ntawm cov khoom siv hauv daisy-chain teeb tsa, tsis muaj kev tiv thaiv tshwj xeeb.
Txoj Haujlwm Kev Ua Haujlwm
Tom qab kev teeb tsa lub cev, qhov system teeb tsa tshwm sim los ntawm software:
Ntaus chaw nyob thiab kev txheeb xyuas
Pab pawg ua haujlwm
Scene programming
Tswj cov cuab yeej kos duab
Kev txheeb xyuas qhov system thiab kuaj
Qhov kev tshaj tawm digital no tso cai rau kev teeb tsa yooj yim raws li qhov xav tau ntawm qhov chaw hloov zuj zus, tsis tas yuav hloov lub cev rau kev teeb tsa.
Integration Peev xwm
Tsev Automation Systems
DALI koom ua ke nrog kev tswj hwm lub tsev loj xws li Lutron, KNX, thiab BACnet. Qhov no ua rau muaj kev sib koom ua ke ntawm kev tswj teeb pom kev zoo nrog HVAC, kev ruaj ntseg, thiab lwm yam hauv tsev.
Hybrid Configurations
Kev sib koom ua ke DALI nrog lwm cov kev tswj hwm tuaj yeem ua kom zoo dua ob qho tib si kev ua haujlwm thiab tus nqi. Common integration scenarios muaj xws li:
DALI rau kev tswj teeb pom kev zoo nrog KNX rau kev tswj hwm lub tsev
RF wireless extensions rau retrofit daim ntaub ntawv
IoT platform txuas rau huab -raws li kev tswj hwm
Daim ntawv thov Scenario

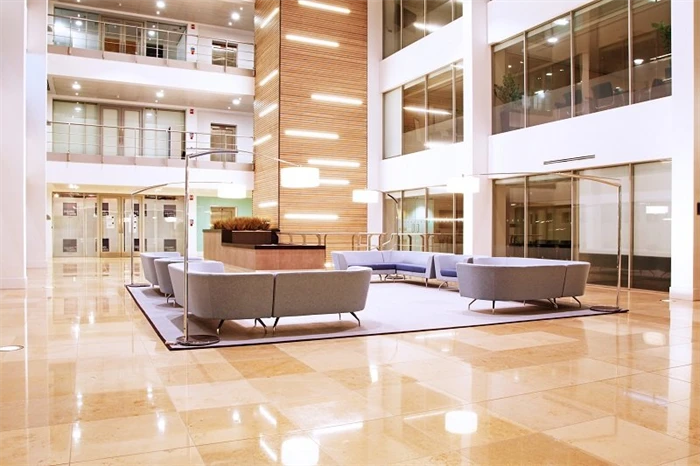

Chaw Ua Lag Luam
Kev tswj lub teeb pom kev ua haujlwm ntawm tus kheej
chav sib tham scene presets
Corridor thiab thaj chaw automation
Kev tswj hwm lub zog los ntawm kev nyob thiab kev sau hnub ci
Khw muag khoom ib puag ncig
Flexible khoom highlighting
Kev hloov kho teeb pom kev raws caij nyoog
Lub sijhawm ua haujlwm automation
Kev siv hluav taws xob optimization
Cov chaw tos txais qhua
Chav tsev teeb pom kev zoo scenes
Pej xeem cheeb tsam mus ob peb vas teeb pom kev zoo
Tsev noj mov thiab bar ambiance tswj
Qhov chaw- lub sijhawm teeb pom kev dav dav
Cov Khoom Siv Muaj
High -bay teeb pom kev zoo cheeb tsam tswj
Kev saib xyuas teem caij los ntawm kev saib xyuas kev siv
Kev nyab xeeb thiab teeb pom kev kub ceev kev sib koom ua ke
Kev siv zog taug qab
Technical Specifications
Bus Voltage:16V DC (npe)
Maximum Devices per Bus:64 tswj iav + 64 tswj cov cuab yeej
Kev xaim:Standard ob-wire bus, polarity-tsis hnov
Cov ntaub ntawv tus nqi:1200 ib
Cable Length:Qhov siab tshaj 300 meters ib lub npav
Kev siv cov khoom siv
InStyle LED muaj cov kev daws teeb meem DALI suav nrog:

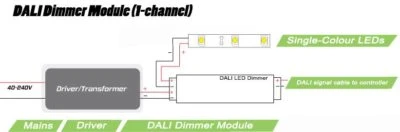

Ib -channel DALI txais (8A muaj peev xwm)

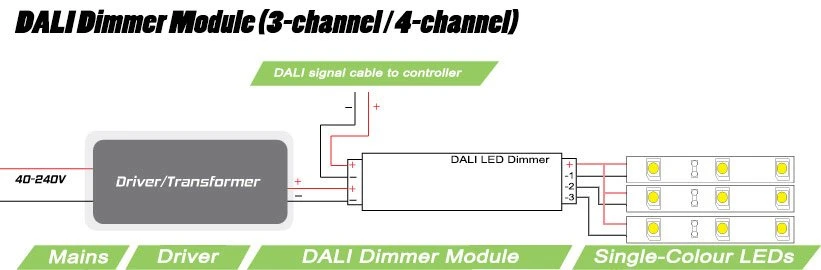

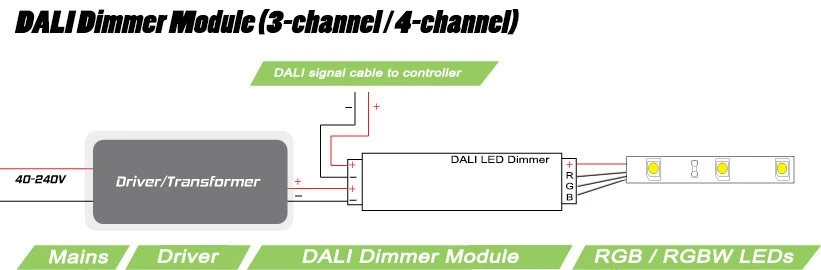

Ntau -channel DALI maub los (4 × 5A teeb tsa)
Phab ntsa -mounted dimmers thiab interface panels
Cov txheej txheem kev koom ua ke
Yav tom ntej -Proof Design
DALI qhov kev hloov pauv tsis tu ncua ua kom muaj kev cuam tshuam txuas ntxiv:
DALI-2 txhim khu kev sib cuam tshuam thiab ntxiv cov cuab yeej tshiab
Wireless DALI kev xaiv txuas ntxiv hloov tau yooj yim rau cov haujlwm ua haujlwm rov qab
IoT kev koom ua ke muaj peev xwm txuas ntxiv nthuav dav
Kev loj hlob ntawm cov chaw tsim khoom siv ntxiv dag zog rau ecosystem
Xaus
DALI sawv cev rau qhov zoo tshaj qhov sib npaug ntawm kev tswj teeb pom kev zoo thiab kev ua kom zoo. Nws txoj kev qhib cov txheej txheem, ua ke nrog cov peev txheej digital muaj peev xwm thiab kev teeb tsa ncaj nraim, ua rau nws txoj kev xaiv zoo rau cov haujlwm uas xav tau kev ntseeg siab, scalable, thiab yav tom ntej - pov thawj tswj teeb pom kev zoo.
Txawm hais tias siv cov kev tswj teeb pom kev zoo hauv ib lub chaw ua haujlwm me lossis tsim lub tswv yim zoo hauv lub tsev automation, DALI muab lub hauv paus kev ua haujlwm thiab kev yooj yim kom tau raws li qhov xav tau tam sim no thiab cov teeb meem yav tom ntej hauv kev tsim teeb pom kev ntse.
