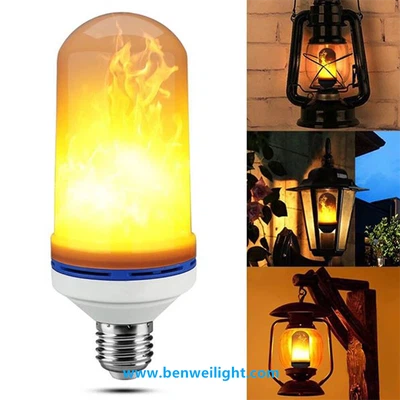

Tsim muaj tiagNplaim teebmeem nrog LEDs: Cov Ntsiab Cai thiab Kev Ua Haujlwm
Replicating lub dynamic, lifelike qualities ntawm ntuj nplaim taws siv lub teeb -emitting diodes (LEDs) yuav tsum tau ib tug ceev faj sib tov ntawm optical engineering, electronics, thiab ib tug nkag siab ntawm nplaim hluav taws physics. Niaj hnub nimno LED nplaim taws teeb pom kev zoo tau hloov zuj zus los ntawm cov qhov muag teeb pom kev yooj yim mus rau cov txheej txheem sophisticated uas ua raws li tus cwj pwm tsis zoo ntawm hluav taws, muab kev nyab xeeb dua, muaj zog dua - lwm txoj hauv kev zoo rau cov tsoos qhib nplaim taws hauv cov teeb pom kev zoo nkauj thiab ua haujlwm zoo.
Ntawm qhov tseem ceeb ntawm qhov tseeb nplaim simulation yog qhov kev nkag siab ntawm cov yam ntxwv ntawm cov nplaim taws. Qhov hluav taws kub tiag tiag nthuav tawm cov khoom sib txawv ntawm lub cev: kev txav mus los ntawm kev sib hloov, tsis xwm yeem flicker los ntawm huab cua turbulence, xim gradients los ntawm tob liab ntawm lub hauv paus mus rau txiv kab ntxwv thiab daj ntawm cov lus qhia, thiab hloov maj mam hloov pauv. Cov yam ntxwv no tshwm sim los ntawm combustion chemistry- qhov twg hydrocarbon fuels reacts nrog oxygen los tsim incandescent soot particles - thiab kua dynamics li kub gases nce thiab cuam tshuam nrog cua txias nyob ib puag ncig.
Txhawm rau rov ua cov khoom no nrog LEDs, tus tsim qauv siv peb lub ntsiab lus tseem ceeb ntawm lub cev:xaiv wavelength emission, dynamic light modulation, thiab diffuse light scattering. LEDs emit cov wavelengths tshwj xeeb ntawm lub teeb, tso cai rau kev tswj hwm ntawm cov xim luam tawm. Los ntawm kev sib txuas liab (620-630nm), txiv kab ntxwv (600-610nm), thiab daj (580-590nm) LEDs-sib piv cov spectral tso zis ntawm hlawv hydrocarbons- engineers tuaj yeem tsim cov xim gradient ntawm cov nplaim taws. Qhov kev xaiv wavelength no ncaj qha mus rau emission spectra ntawm cov pa roj carbon zoo siab hauv hluav taws tiag.
Dynamic modulation yog qhov tseem ceeb sib npaug. Ntuj nplaim taws yeej tsis hlawv nrog kev siv tas li; lawv flicker ua raws li cov qauv tsis raug tswj hwm los ntawm chaotic cua ntws. LED systems siv microcontrollers los tsim pseudo-random mem tes-width modulation (PWM) signals, sib txawv qhov ci ntawm ib tus LEDs ntawm zaus ntawm 5-20Hz. Qhov kev hloov pauv no ua raws li kev sib xyaw ua ke ntawm cov roj thiab cov pa oxygen, tsim kom muaj qhov kev xav ntawm kev txav mus los. Cov txheej txheem Advanced suav nrog cov lus qhia thermal, kho cov qauv flicker raws li qhov kub thiab txias los txhim kho qhov tseeb.
Lub teeb tawg ua lub luag haujlwm tseem ceeb hauv softening LED hnyav. Tsis zoo li qhov taw tes- qhov chaw LEDs, cov nplaim hluav taws ua rau lub teeb sib txawv los ntawm cov khoom tawg. Yuav kom rov ua dua qhov no, cov nplaim hluav taws xob siv hluav taws xob siv cov khoom siv frosted, cov ntaub ntawv translucent, lossis fiber ntau - cov khoom siv kho qhov muag uas cuam tshuam lub teeb ci ntawm refraction thiab reflection. Qee cov qauv siv vibrating cov ntsiab lus los yog rotating baffles los cuam tshuam lub teeb txoj kev dynamically, tsim cov seev cev ntawm nplaim taws thaum lawv cuam tshuam nrog huab cua tam sim no.
Kev siv cov txheej txheem sib txawv los ntawm kev siv cov complexity. Cov txheej txheem yooj yim siv RC circuits yooj yim los tsim qhov tsis sib xws, thaum cov qauv hwm siv cov programmable microcontrollers (xws li Arduino lossis ESP32) khiav algorithms uas simulate nplaim taws physics. Cov algorithms qauv convection tam sim no los ntawm maj mam nce qhov ci ntawm sab sauv LEDs thaum dimming qis dua, ua raws li kev nce siab ntawm cov roj kub kub.
Kev tswj cua sov kuj cuam tshuam txog kev muaj tiag. Thaum LEDs ua haujlwm txias dua li qhov hluav taws kub tiag tiag, qee qhov qauv tsim muaj cov khoom siv hluav taws xob me me uas muaj cua sov nyob ze, tsim cov hluav taws xob sib txuas uas lub cev txav mus rau lub teeb yuag diffuser. Qhov no ntxiv lub cev qhov loj me rau qhov pom qhov muag tsis pom kev, txhim kho qhov kev nkag siab ntawm ntuj tsim.
Xim kub tswj ntxiv refines realism.Cov nplaim taws tiag tiag muaj qhov sib txawv ntawm qhov kub thiab txias- sov dua (2000-2200K) ntawm cov tub ntxhais thiab txias dua (1800-2000K) ntawm cov npoo.LED systems siv ntau - nti pob khoom nrog kho xim sib xyaw kom rov ua dua cov thermal gradients, nrog rau qee cov qauv sib txuas nrog lub teeb pom kev zoo los hloov xim xim rau ib puag ncig.
Hauv kev xaus, tsim kom muaj qhov tshwm sim ntawm cov nplaim hluav taws xob tiag tiag yuav tsum tau txhais cov ntsiab lus ntawm lub cev ntawm kev sib txuas, cov dej tsis muaj zog, thiab lub teeb emission rau hauv cov tshuab ua haujlwm. Los ntawm kev sib txuas cov kev tswj lub wavelength meej, kev hloov pauv hloov pauv, thiab lub teeb pom kev sib txawv, LED thev naus laus zis tau ua tiav qhov pom kev nyuaj ntawm ntuj hluav taws. Cov tshuab no muab cov txiaj ntsig tseem ceeb hauv kev nyab xeeb, kev siv hluav taws xob zoo, thiab kev siv lub neej ntev thaum muab ntau yam kev siv los ntawm cov teeb pom kev zoo nkauj rau kev simulation thaum muaj xwm txheej ceev, ua kom pom kev nkag siab txog lub cev lub ntsiab lus ua rau lub teeb pom kev zoo.
