Phau Ntawv Qhia Kom Paub: Shunted vs. Non-Shunted Lamp Holders
Los ntawm Kevin Rao Nov 18, 2025
|
Lub Teeb Holder (Tombstone) yog dab tsi? Shunted Teeb Lub Teeb Tsis yog -Shunted Lamp Holders Cov lus sib piv: Shunted vs. Non-Shunted Thaum twg los xaiv Shunted vs. Tsis yog -Shunted Cov ntsiab lus |
Lub lag luam teeb pom kev zoo nta ntau hom teeb tuav (feem ntau hu ua "tombstones"), thiab qhov kev txiav txim siab tseem ceeb ntawm cov neeg yuav khoom yog seb puas yuav siv shunted lossis tsis yog -shunted versions. Xaiv hom raug rau cov teeb pom kev zoo yog qhov tseem ceeb los tiv thaiv hluav taws xob, ua kom muaj kev nyab xeeb ntawm lub cev, thiab tswj xyuas cov khoom pov thawj. Kev siv yam tsis raug tuaj yeem ua rau luv luv, kev puas tsuaj rau cov khoom siv, cov npe UL tsis muaj npe, txo lub teeb lub neej, lossis txawm tias muaj hluav taws kub.
Phau ntawv qhia no qhia txog qhov sib txawv ntawm shunted thiab tsis yog -shunted teeb tuav thiab muab kev taw qhia meej rau lawv cov ntawv thov kom raug.
Lub Teeb Holder (Tombstone) yog dab tsi?

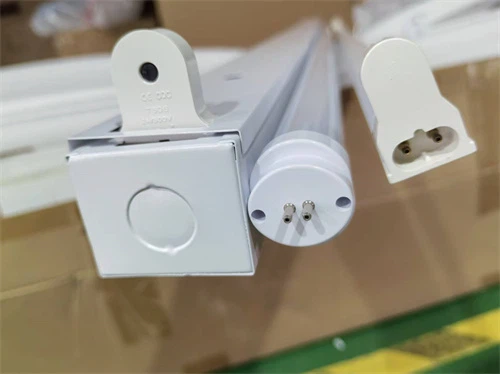

Lub teeb lub teeb yog lub cev thiab hluav taws xob sib cuam tshuam uas ruaj ntseg lub teeb lub teeb (xws li fluorescent lossis LED raj) thiab txuas rau lub zog hluav taws xob. Nws ua kom muaj kev nyab xeeb thiab txhim khu kev qha hluav taws xob xa mus rau lub teeb.
Qhov txawv tseem ceeb: Shunted vs. Non-Shunted
Qhov sib txawv tseem ceeb nyob rau hauv lawv cov kev teeb tsa hluav taws xob sab hauv, uas txiav txim siab li cas tam sim no ntws mus rau lub teeb lub pins.
Shunted Teeb Lub Teeb
Internal Structure:Shunted teeb tuav muaj ib tug ua tau - nyob rau hauv conductive choj (lub shunt) uas nyob rau hauv txuas ob hlau hu. Qhov no tsim ib txoj hauv kev hluav taws xob.
Tam sim no Flow:Lub zog yog muab rau ib sab ntawm tus tuav. Lub shunt sab hauv tso cai rau tam sim no hla dhau ob qho kev sib cuag ib txhij, muab lub voj voog ua tiav rau lub teeb lub pins ntawm qhov kawg nkaus. Qhov no yog vim li cas qee lub raj LED, piv txwv li, tuaj yeem teeb nrog lub zog txuas nrog tsuas yog ib qho kawg ntawm lub teeb, thaum lwm qhov kawg ua haujlwm tsuas yog kev txhawb nqa lub cev.
Feature tseem ceeb:Lawv txoj hlua hluav taws xob yooj yim dua vim tias kev sib txuas sab hauv tshem tawm qhov xav tau ntawm cov xov hlau sib cais rau txhua qhov kev sib cuag ntawm tib kawg.
Tsis yog -Shunted Lamp Holders
Internal Structure:Tsis yog -shunted teeb tuav muaj ob qho tib si sib cais, hluav taws xob tiv tauj. Tsis muaj tus choj sab hauv.
Tam sim no Flow:Lub zog yuav tsum tau xa tawm ntawm nws tus kheej mus rau txhua qhov kev sib cuag ntawm cov xov hlau sib cais. Tam sim no feem ntau nkag mus los ntawm ib tus pin ntawm ib qho kawg ntawm lub raj, taug kev los ntawm lub teeb lub hauv Circuit Court, thiab tawm los ntawm tus pin ntawm qhov kawg ntawm qhov kawg, ua ib lub voj nruam.
Feature tseem ceeb:Lawv muab txoj kev ywj pheej ntawm hluav taws xob, muab kev yooj yim dua rau cov kev teeb tsa tshwj xeeb, xws li cov kab hluav taws xob lossis cov tshuab nrog dimmers.
Visual Identification thiab Testing
Thaum lub cev sib txawv tuaj yeem pom qee zaum, txoj kev txhim khu kev qha tshaj plaws kom paub meej tias hom yog siv multimeter teeb rau hom txuas ntxiv. Yog hais tias lub 'meter' beeps thaum kov ob tus neeg sib cuag, tus tuav yog shunted. Tsis muaj beep qhia tias tsis yog -shunted tuav.
Cov lus sib piv: Shunted vs. Non-Shunted
| Feature / Aspect | Shunted | Tsis yog -Shunted |
|---|---|---|
| Sab Hauv Hluav Taws Xob | Terminals yog txuas nrog sab hauv | Terminals yog cais hluav taws xob |
| Tam sim no Flow | Ib leeg, kev sib koom ua ke | Sib cais, txoj kev ywj pheej |
| Thawj Siv Case | Tam sim no - pib fluorescent ballasts; Hom A LED tubes | Series Circuits; Ballast{0}}bypass LED raj (Hom B) |
| LED Compatibility | Ua haujlwm tsuas yog nrog hom A (plug-thiab-play) LEDs | Yuav tsum tau rau hom B (direct{0}}hlau) LEDs |
| Ballast Dependency | Yuav tsum muaj ballast rau kev ua haujlwm | Tsis xav tau ballast (hauv ballast-bypass teeb) |
| Kev Siv Hluav Taws Xob | Yooj yim dua | Ntau txoj kev, yuav tsum tau ceev faj |
| Cov ntawv thov siv | Kev lag luam qub fluorescent fixtures | Niaj hnub nimno LED retrofits thiab kho tshiab installation |
Thaum twg los xaiv Shunted vs. Tsis yog -Shunted
Qhov kev xaiv feem ntau yog nyob ntawm ballast thiab hom teeb siv.
Xaiv SHUNTED Lamp Holders thaum:
Koj sivfluorescent raj nrog ib qho tam sim - pib ballast.
Koj tab tom txhim khoHom A (Plug-thiab-Play) LED tubes, uas yog tsim los ua haujlwm nrog cov fluorescent ballast uas twb muaj lawm. Lub shunted tuav muab txoj kev hluav taws xob raug rau cov ballast - nyob ntawm cov tshuab.
Xaiv TSIS MUAJ -SHUNTED Lub Teeb Teeb Thaum:
Koj tab tom ua ibLED retrofit nrog Hom B (Ballast Bypass) LED raj. Cov hlab no xav tau cov kab hluav taws xob ncaj qha mus rau txhua qhov kawg ntawm lub raj, uas tsuas yog ua tau nrog cov neeg sib cais.
Cov khoom siv yog aprogrammed-pib lossis nrawm- pib ballast(feem ntau nyob rau hauv cov laus fluorescent systems).
Cov kab hluav taws xob configuration yog aseries ntawm Circuit Court.
Daim ntawv thov suav nrogdimmable teeb pom kev zoo systemsuas yuav tsum tau cais tam sim no tswj.
Cov ntsiab lus
Hauv cov ntsiab lus, qhov kev txiav txim siab ncaj nraim:
Shunted:Siv rauballast-nyobsystems (thaum - pib fluorescents thiab hom A LEDs).
Tsis yog -Shunted:Siv rauballast -bypasslos yog ncaj qha -wire systems (Hom B LEDs) thiab lwm yam kev siv uas xav tau kev ywj pheej ntawm hluav taws xob.
Yog tias koj tsis paub meej, nco ntsoov sab laj nrog lub tuam txhab teeb pom kev zoo lossis nrhiav tswv yim los ntawm tus kws tshaj lij teeb pom kev zoo kom muaj kev nyab xeeb thiab ua raws li kev teeb tsa.
