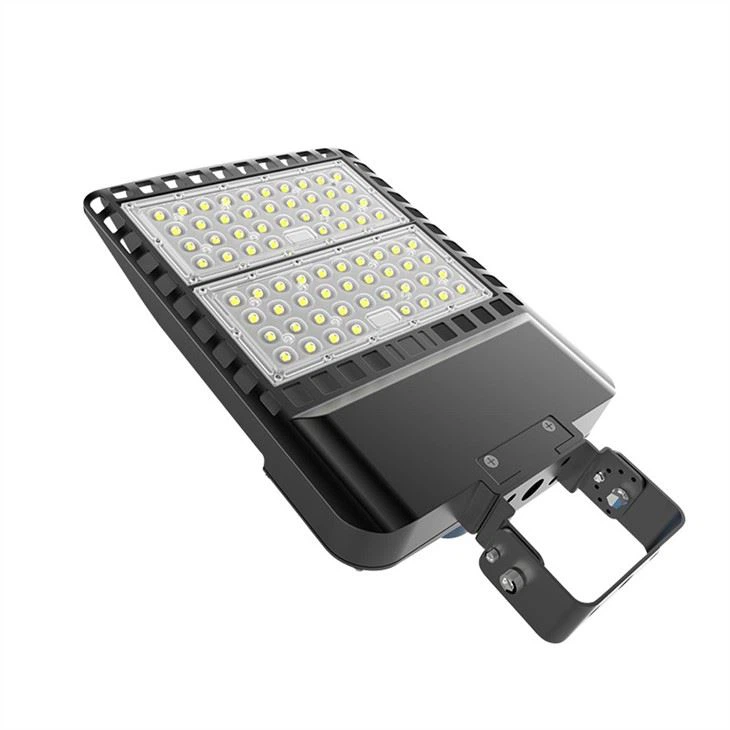

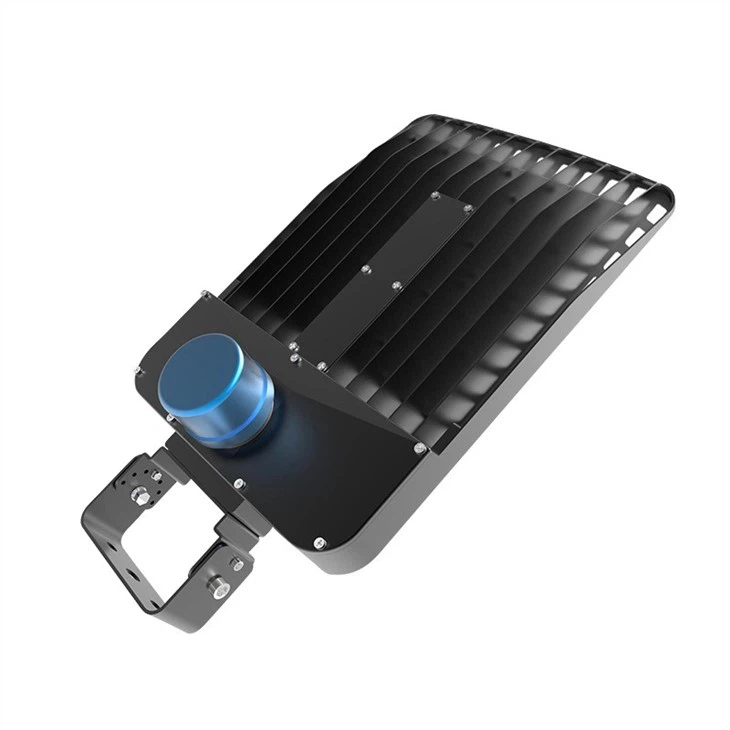

IP66 Shoes Box LED Txoj Kev Teeb

58 (2)

Nta

Tiv thaiv kub

SU304 stainless hlau

Tsis txhob xeb lossis corrosion

Dow corning thermal roj kom zoo dua tshav kub kis

Specification

Tag nrho nyob rau hauv ib tug coj txoj kev teeb IP65

Khoom Code	Tswv yim	Watts	Lumens	Dimension thiab hnyav
BW-SBL60-UN-QW-BR-U-III-X00	100-277V AC	60W	9 000 lm	Qhov hnyav ib chav tsev: 3.9 kg QTY ib lub thawv: 1PCS Qhov Loj: 56 * 37 * 14 Qhov hnyav: 4.62KG 3.9kg :ua
BW-SBL80-UN-QW-BR-U-III-X00		80W	12 000 lm
BW-SBL100-UN-QW-BR-U-III-X00		100W	15 000 lm
BW-SBL120-UN-QW-BR-U-III-X00		120w	18 000 lm
BW-SBL150-UN-QW-BR-U-Ⅲ-X00		150W	22 500 lm	yuag ib unit: 5.3 kg QTY ib lub thawv: 1pcs Qhov loj me (cm): 69 * 38 * 14 Qhov hnyav: 6.25KG Nyhav: 5.3KG
BW-SBL200-UN-QW-BR-U-Ⅲ-X00		200W	30 000 lm
BW-SBL250-UN-QW-BR-U-Ⅲ-X00		250W	3 7500m	yuag: 7.4 kg QTY ib lub thawv: 1pcs Qhov loj me (cm): 87 * 38 * 17 Qhov hnyav: 8.45KG Nyhav: 7.4KG
BW-SBL300-UN-QW-BR-U-Ⅲ-X00		300W	45 000 lm

58 (4)

58 (3)

Daim ntawv thov

58 (1)

Cov lus qhia installation:

1. Cov kws kho hluav taws xob tsis yog tshwj xeeb thov tsis txhob kho lossis hloov cov khoom no yam tsis tau tso cai;

2. Thov tua lub hwj chim ua ntej installation;

3. Ua ntej kev teeb tsa, thov xyuas seb qhov hluav taws xob tau cim rau ntawm lub teeb puas zoo ib yam nrog rau qhov hluav taws xob input kom txuas;

4. Txhawm rau kom ntseeg tau lub neej kev pab cuam ntawm cov khoom, thov tsis txhob siv nws nyob rau hauv ib qho chaw uas muaj zog acid pos huab;

5. Ua tib zoo saib xyuas kev tiv thaiv kev poob siab thaum kev teeb tsa thiab kev thauj mus los;

6. Ua ntej kev teeb tsa, xyuas kom meej tias qhov chaw teeb tsa tuaj yeem tiv taus 10 npaug ntawm qhov hnyav ntawm cov khoom, thiab nruab rau hauv qhov chaw tiaj tus yam tsis muaj kev vibration, tsis muaj viav vias, tsis muaj hluav taws kub;

7. Yog tias lub teeb tsis ua haujlwm, thov tso lub teeb rau hauv ib qho chaw thiab xa rov qab mus rau lub tuam txhab tshuaj xyuas thiab kho.

8. Yog tias lub teeb lub cev lossis xaim puas lawm, thov tsum tsis txhob siv tam sim ntawd.

Cim npe nrov: tag nrho nyob rau hauv ib tug coj txoj kev teeb ip65, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, yuav, nqe, zoo, pheej yig, kev muag, Tshuag, dawb qauv

Cov khoom lag luam

Tag nrho cov nyob rau hauv ib tug coj txoj kev teeb IP65
