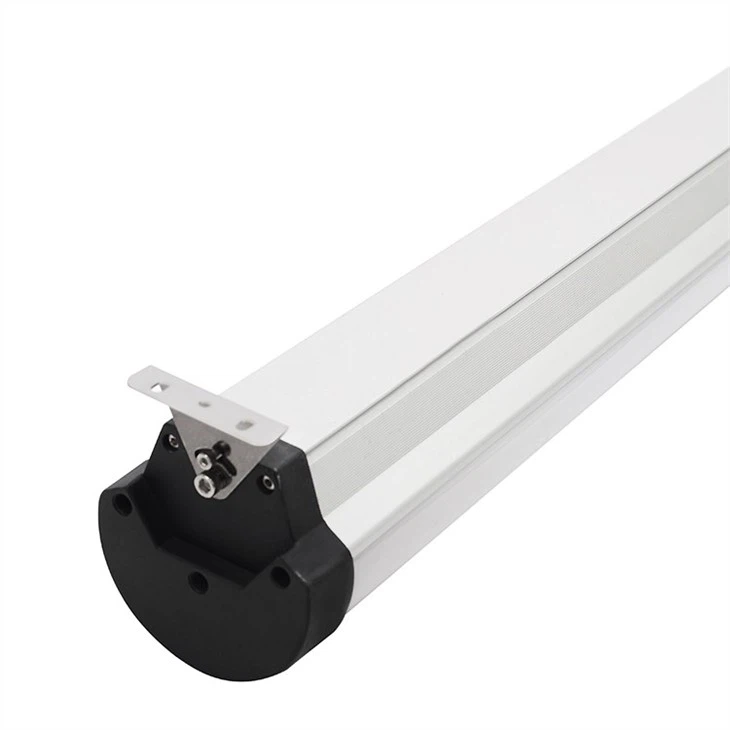

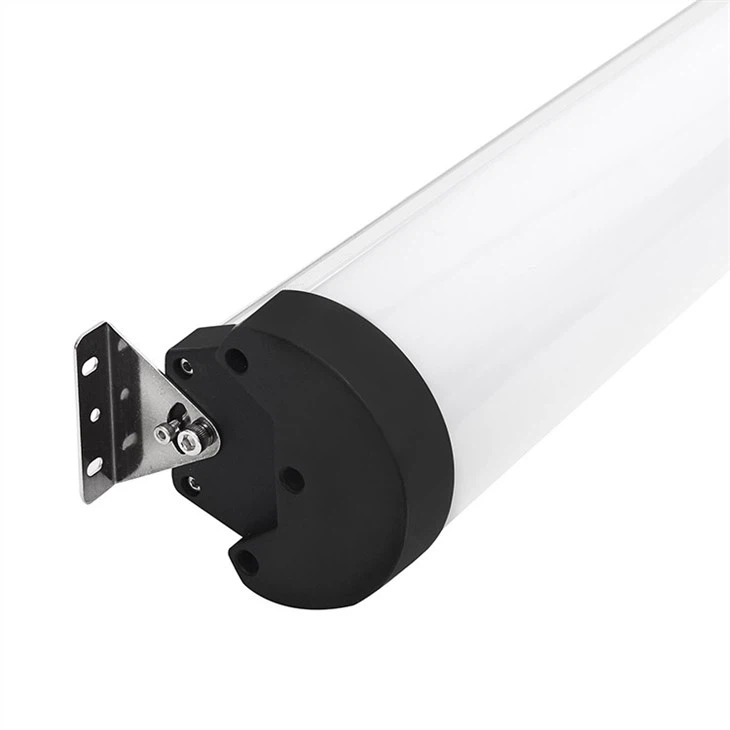

Low Bay Led Teeb pom kev zoo
Tsawg bay coj teeb pom kev zoo Khoom Feature:
High Output LED's, mus txog 125 ~ 130m / W, LM80 lub teeb ci
• High CRI >80
• UL,FCC,TUV,RCM,CB,CE certified driver,High PF>0.96 tsawg THD tsav tsheb
• Ib puag ncig tus phooj ywg, tsis muaj mercury, Tsis muaj UV, Tsis muaj IR
• Linkable Option (Customize cable ntev)
• Lub kaum sab xis dav 180 degree
• IP66 waterproof, plua plav, corrosion, thiab siab-pov thawj; rau sab hauv tsev & sab nraum zoov siv
• Qib Efficiency Qib: Ib qho ntxiv
• Pib nrawm nrawm 100 feem pua lub teeb ci ntsa iab
• Aluminium vaj tse ntxiv rau PC npog
• 5 Xyoo Warranty ntawm kev ua kom tiav. (LED's, Tsav Tsheb, & Housing)
• Daim ntawv pov thawj: CE, RoHs, ETL, DLC, SAA, TUV (Tsav)
• Kev xaiv:
1-10V dimming,
1-10v Kauj Ruam Dim Microwave Sensor > 15m (Tuaj yeem siv los ua On / Off ntawm tsis yog-1-10v)MW,
3h Thaum muaj xwm ceev roj teeb thaub qab
• Hanging mount accessories suav nrog; 90 degree adjustable mounting clips rau kev xaiv
Low bay coj teeb pom kev zooKhoom Specification:
| Qauv No | BW5F-100W | BW5F-80W | BW4F-60W | BW4F-40W | BW2F-30W |
| Lub zog nkag | 100W | 80W | 60W | 40W | 30W |
| Ambient temp | -35 ~ ntxiv rau 40 degree | -35 ~ ntxiv rau 40 degree | -35 ~ ntxiv rau 40 degree | -35 ~ ntxiv rau 40 degree | -35 ~ ntxiv rau 40 degree |
| IK | 10 | 10 | 10 | 10 | 10 |
| Kev ua neej nyob | 50000H | 50000H | 50000H | 50000H | 50000H |
| Warranty | 5 Xyoo | 5 Xyoo | 5 Xyoo | 5 Xyoo | 5 Xyoo |
| IP Qib | IP65 | IP65 | IP65 | IP65 | IP65 |
| Fais fab xwm txheej | >0.92 | >0.92 | >0.92 | >0.92 | >0.92 |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Luminous Efficiency | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w | 130 lm/w |
| CCT | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K | 2700~6500K |
| LED QTY | 456pcs Epistar | 456pcs Epistar | 336pcs Epistar | 336pcs Epistar | 180 pcs Epistar |
| Input voltage | AC200 ~ 240V | AC200 ~ 240V | AC200 ~ 240V | AC200 ~ 240V | AC200 ~ 240V |
| Dimension | 1500 * 105 * 102 hli | 1500 * 105 * 102 hli | 1200 * 105 * 102 hli | 1200 * 105 * 102 hli | 600 * 105 * 102 hli |
Tsawg bay coj teeb pom kev Ntau Cov Lus Qhia
2 ko taw 30W waterproof LED Linear Light Fixture nrog txhuas vaj tse
High Output LED's, mus txog 130lm / W
Daim ntawv pov thawj: CE, RoHs, ETL, cETL, DLC.
1-10V Dimming, DALI Tswj
Suspension Mount
Nto mounting
90 degree adjustable phab ntsa mounting clips rau kev xaiv
Daim ntawv thov Low Bay LED teeb pom kev zoo:
Txias Cia: Chaw Muag Khoom Muag Khoom Muag Khoom Muag Khoom Muag Khoom Muag Khoom Muag
Wineries, Tsev noj mov cia, Brewery Facilities
Kev ua zaub mov: Cov nqaij ntim khoom, lub raj mis chaw, Cheese Factories,
Cov chaw tsim khoom, ntim ntses, Bakeries
Warehouse & Logistics
Chaw Nres Tsheb Thiab Ntau
offshore thiab marine industries
