Industrial Led Bay Teeb
Lub zog muaj zog, qis THD tsav tsheb nrog 4kV surge tiv thaiv
Patented thiab tshwj xeeb tsim, Aesthetic qauv thiab cim style
AC120-277V/120-347V, IP65, 5 xyoo lav
Wattage Tunable, Lens 60 degree, 90 degree, 120 degree yeem
IP65 waterproof, plua plav, corrosion thiab siab-pov thawj, Ua haujlwm kub: -30 degree ~ 45 degree
Build-in microwave sensor thiab Emergency backup xaiv tau, Ua tau zoo 150LM/W 180LM/W
DLC, UL, CE, RoHs, daim ntawv pov thawj
Xa kev nug
Khoom Taw qhia
Khoom Taw Qhia:
Khoom feature:
LED UFO high bay teeb yog lwm lub khw muag khoom teeb pom kev zoo. Tib neeg qee zaum hu nws "UFO" vim tias nws muaj lub teeb ci vaj huam sib luag thiab tus tsav tsheb me me rau saum.
Nrog nws cov kev ua tau zoo, kev ua haujlwm hnyav, kev tsim qauv puag ncig, thiab cov kab hluav taws xob muaj zog, UFO siab compartment tau txiav txim siab kom muaj lub zog, ruaj khov zoo nkauj uas zoo nkauj zoo nkauj hauv kev siv niaj hnub no.
Vim tias lawv tsis tas yuav muaj qhov cuam tshuam los cuam tshuam lub teeb nyob rau hauv ib qho kev taw qhia xws li HID teeb, lawv tuaj yeem ua kom sib haum. Lawv muaj ib tug fin tail tsim uas yuav pab kom dissipate ib tug me me ntawm tshav kub tusyees kom txias nws.
Khoom Specification:
| Qauv | Hwj chim | Input voltage | Loj | CRI | CCT | Lumen 150 LM / W | Lumen 180 LM / W | Beam lub kaum sab xis |
| BW-HBSL100W-XXK | 100W | AC 120-277V AC 120-347V | Φ310 0x108.0mm | >70 | 3000K 5000K 5700K | 15 000 LM | 18 000 LM | 60 degree 90 degree 120 |
| BW-HBSL150W-XXK | 150W | 22 500 LM | 27 000 LM | |||||
| BW-HBSL200W-XXK | 200W | Φ350 0x120.0mm | 30 000 LM | 36 000 LM | ||||
| BW-HBSL240W-XXK | 240W | 36 000 LM | 4 3200 lm | |||||
| BW-HBSL(80/100/120/150)W-XXK | 80W | AC 120-277V AC 120-347V | Φ310 0x108.0mm | >70 | 3000K 4000K 5000K 5700K | 12 000 LM | 14 400 LWM | 60 degree 90 degree 120 |
| 100W | 15 000 LM | 18 000 LM | ||||||
| 120W | 18 000 LM | 2 1600 lm | ||||||
| 150W | 22 500 LM | 27 000 LM | ||||||
| BW-HBSL(180/200/220/240)W-XXK | 180W | Φ350 0x120.0mm | 27 000 LM | 32 400 lm | ||||
| 200W | 30 000 LM | 36 000 LM | ||||||
| 220W | 33 000 LM | 3 9600 lmx | ||||||
| 240W | 36 000 LM | 4 3200 lm |
Paub meej ntxiv:
Kev ua haujlwm siab 150lm / w lossis 180lm / w
Lub tsev yog kev ua qauv zoo nkauj thiab tshwj xeeb style

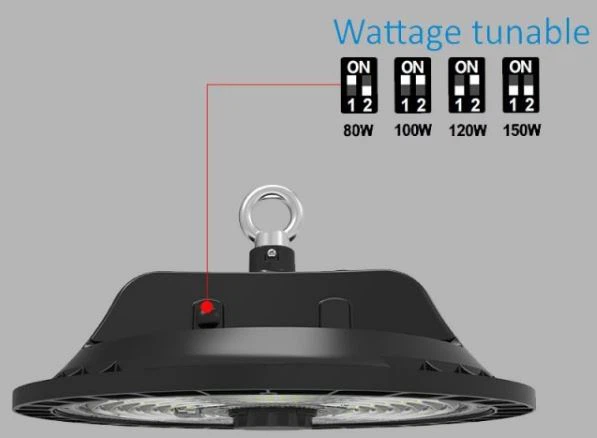

4 Watt Tunable
80W/100W/120W/150W
180W/200W/220W/240W
Microwave sensor, yooj yim rau nruab
Lub sensor los nrog IP65, nws tuaj yeem ntsia tau ntawm
peb lub Hoobkas ua ntej shipping; thiab lub sensor tuaj yeem ntsia tau los ntawm koj tus kheej thaum xav tau sensor.
Build-in driver
UFO LED coj tus thawj coj hauv kev siv lub zog sib xyaw ua ke, uas zoo nkauj hauv kev tsim thiab tseem txuag chaw ntim khoom.
Qhov zoo tshaj plaws cua sov dab dej
Tuag-casting aluminium kub dab dej ntau nto kom hloov cua sov los ntawm. Txaus qhov chaw nruab nrab ntawm cov fins kom tshem tawm cov cua sov.
Kev tswj teeb pom kev ntse
0-10V dimming/Motion sensor/remote controller

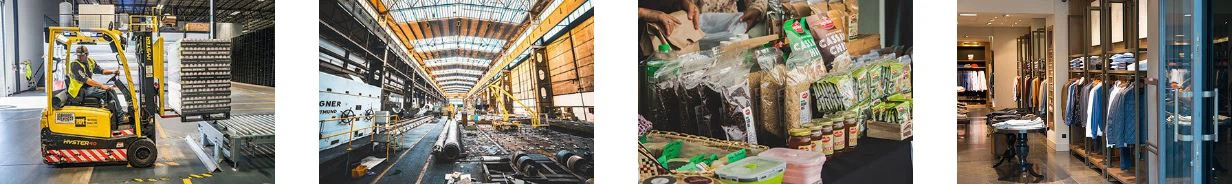

Daim ntawv thov:
Installation txoj kev:
O nuv Installation
1. Ua ntej kho tus nuv ntawm lub teeb (tso clockwise). ces txuas tus nuv nrog lub nplhaib xauv.
2.Siv lub laum hluav taws xob los tho qhov rau ntawm phab ntsa.
3. Kho lub hanger ntawm phab ntsa nrog screws.
4.Kho ib kawg ntawm cov saw hlau mus rau phab ntsa, lwm qhov kawg rau O nuv los ntawm lub teeb, ua kom tiav lub installation. (led ufo high bay teeb thaiv)
U bracket Installation
1.Siv lub laum hluav taws xob txhawm rau txhawm rau lub qhov ntawm phab ntsa.
2.Nruab lub expansion ntsia hlau mus rau qhov uas twb muaj lawm drilling qhov.
3.Txhim lub U bracket rau phab ntsa los ntawm cov txiv ntseej, lub cushion tiaj, Caij nplooj ntoos hlav shim.
4.Siv tus ciaj ntswj los thim rov qab cov txiv ntoo hexagon thiab kho lub kaum sab xis uas xav tau.
