Cov khoom lag luam

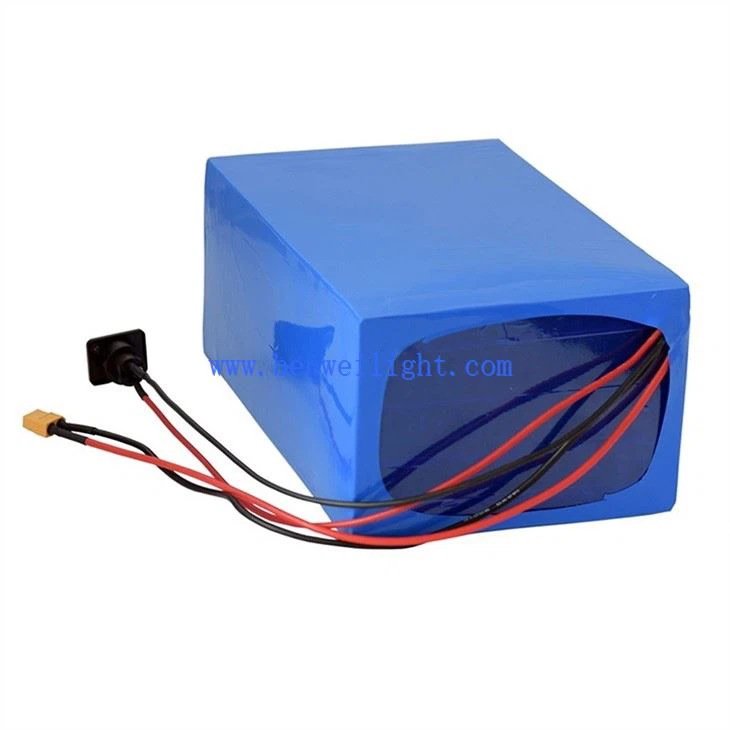

Lifepo4 12v 7 aw
Lithium polymer 12V 20Ah roj teeb pob ntawm Nta.
1.Different muaj peev xwm roj teeb hlwb rau kev xaiv: 2000mAh / 2200mAh / 2400mAh / 2600mAh / 2800mAh .
2.Green khoom, ntev standby lub sij hawm, 3 xyoo wrranty, zoo heev kev nyab xeeb kev kawm.
3.Short circuit xeem dhau, overcharge xeem dhau.
4.Qhov kev pabcuam muag zoo tshaj plaws thiab tus nqi zoo.
5.High muaj peev xwm, theem siab platform, ntev ua hauj lwm lub sij hawm, lub neej voj voog ntev,
Xa kev nug
Khoom Taw qhia
lifepo4 12v 7 aw
Khoom nta:
Lithium polymer roj teeb lifepo4 12v 7ah pob.
1.Different peev xwm roj teeb cellsforoption: 2000mAh / 2200mAh / 2400mAh / 2600mAh / 2800mAh.
2.Green khoom, ntev standby lub sij hawm, 3 xyoo wrranty, zoo heev kev nyab xeeb kev kawm.
3.Short circuit xeem dhau, overcharge xeem dhau.
4.Qhov kev pabcuam zoo tshaj plaws thiab tus nqi zoo.
5.High muaj peev xwm, theem siab platform, lub sij hawm ua hauj lwm ntev, lub neej voj voog ntev.
| Nominal voltage | 12.8V |
| Nominal muaj peev xwm | 7ah (OEM) |
| Hom roj teeb | Sab saum toj qib A 3.2V 7000mah LifePO4 Cylindrical Lithium hlau phosphate roj teeb ntawm tes |
| Qauv | BW-1207/4S1P |
| Roj teeb configuration | 4S2P |
| Sab hauv tsis kam | ≤420mΩ |
| Qhov kawg ntawm tus nqi voltage | 14.6V |
| Xaus cov nqi tam sim no | 200 mA |
| Qhov kawg ntawm qhov tso tawm voltage | 9.2V |
| Txoj kev them nqi | CC / CV (tsis tu ncua tam sim no / tsis tu ncua voltage) |
| Max nruam them tam sim no | 10A (cov lus qhia) |
| Max nruam tawm tam sim no | 25A |
| Max pulse tawm tam sim no | 30A/10S |
| Net nyhav | 720g Net nyhav |
| Case khoom | ABS cas |
| Case dimension | 7ah : 151 * 65 * 95mm (txhua qhov loj tuaj yeem kho tau) |
| Warranty | 2 xyoo. 3 xyoos rau tus neeg muag khoom |
| Ua-hauv BMS | Kev soj ntsuam ntawm tes thiab PCB kub, tam sim no, voltage, cell ntsuas, thiab lwm yam |
| Terminal Hom | M8 |
| Lub neej voj voog | Lub neej sib sib zog nqus 2000 zaug, 80% dod, 5000 zaug, 65% dod, 8000 zaug, 40% dod |
| Charge kub | 0~45℃ |
| Tshem tawm kub | -20~60℃ |
| Cia kub | -10~45℃ |
| Daim ntawv pov thawj | CE, RoHS, MSDS thiab UN38.3 ntawv pov thawj |
| Parallel sib dhos | mus txog 10 yam khoom (12V-70Ah lossis ntau dua) |
| Kev Tiv Thaiv Kev Tiv Thaiv | IP56 lossis customized IP67 muaj |
| Daim nplaum | OEM daim nplaum txais tos, koj tuaj yeem xa desgin rau customization |
Daim ntawv thov:
lifepo4 12v 7 aw
Lub neej voj voog ntev dua
FAQ:
lifepo4 12v 7 aw
Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog lub Hoobkas nrog 3 lub hauv paus tsim khoom uas nyob hauv Shenzhen, Dongguan, Huizhou hauv xeev Guangdong.
Q: Dab tsi' yog MOQ txwv?
A: Tsis muaj MOQ rau cov qauv. Rau kev txiav txim ntau ntau, ntau qhov ntau, qhov pheej yig dua.
Q: Yuav ua li cas txog lub sij hawm ua khoom loj?
A: Nws nyob ntawm koj qhov kev txiav txim kom muaj nuj nqis, feem ntau 20 ~ 25 hnub ua haujlwm rau cov qauv tsim tshiab, 10 ~ 15 hnub ua haujlwm rau ntau lawm.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: TT, L / C, West Union, thiab lwm yam.
Q: Koj puas muab kev lees paub rau cov khoom?
A: Yog, peb muab 3-5 xyoo lav rau peb cov khoom.
Cim npe nrov: lifepo4 12v 7ah, Suav teb, lwm tus neeg, manufacturers, hoobkas, yuav, nqe, zoo, pheej yig, kev muag, Tshuag, dawb qauv
