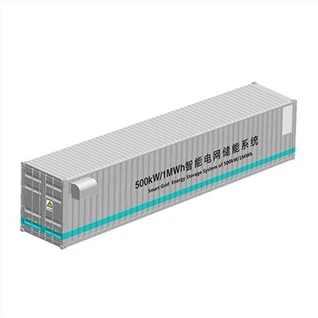

300Kwh 500Kw 1mw Hnub Ci Zog Cia System
Peb lub thawv ntim hluav taws xob khaws cia (BESS) yog qhov kev daws teeb meem zoo tshaj plaws rau cov phiaj xwm loj hauv lub zog cia.
Cov thawv ntim khoom siv hluav taws xob tuaj yeem siv rau hauv kev sib koom ua ke ntawm ntau yam khoom siv thev naus laus zis thiab rau ntau lub hom phiaj.
Xa kev nug
Khoom Taw qhia
300Kwh 500Kw 1mw hnub ci zog cia qhov system
Benwei Thawv Roj Teeb
300Kwh 500Kw 1mw hnub ci zog cia qhov system
Peb lub thawv ntim hluav taws xob khaws cia (BESS) yog qhov kev daws teeb meem zoo tshaj plaws rau cov phiaj xwm loj hauv lub zog cia.
Cov thawv ntim khoom siv hluav taws xob tuaj yeem siv rau hauv kev sib koom ua ke ntawm ntau yam khoom siv thev naus laus zis thiab rau ntau lub hom phiaj.
Khoom Specification:
| BENWEI Lithium Battery Energy Storage System Container | ||||
| Qauv | BW 300 KWH | BW 500 KWH | BW 800 KWH | BW 1 MW |
| Hnub Ci Vaj Huam Sib Luag | 300 KW | 500 KW | 800 KW TSI | 1 MW |
| PV Combiner Box | Cutomized | Customized | Customized | Customized |
| Hybrid Hnub Ci Inverter | 300 KW TSI | 500 KW TSI | 800 KW TSI | 1 MW TSI |
| Utility Voltage Range | 380V / 360V-440VAC; 480V / 432V - 528Vac 50/45 ~ 55Hz; 60/55 ~ 65Hz | |||
| Hnub ci roj teeb Pob | Lithium roj teeb pob BMS/MBMS/EMS tiv thaiv; 2V GEL / OPzV roj teeb yeem | |||
| Roj teeb Racks | 4 Racks | 4 Racks | 6 Racks | 8 Racks |
| Cov Ntaub Ntawv Saib Xyuas | Wifi Monitor / 4G Terminal Saib | |||
| PV Kab | 4/6mm 2 | 4/6mm 2 | 4/6mm 2 | 4/6mm 2 |
| Kev teeb tsa Brackets | Aluminium Alloy, Stainless Hlau, Kub-dip Galvanized Hlau, Ntsia Hlau Mounting, Adjustable Brackets, Hnub Ci Tracker | |||
| Qhov chaw nruab | Xim Hlau Pobzeb / Tin Pitched ru tsev, tiaj tus ru tsev, cement / av av, Carport, thiab lwm yam | |||
| Cov cuab yeej Installation | Hlau Cable Cutter & Stripper, Multi-Meter, Insulating hnab looj tes / npog thiab lwm yam | |||
| Rau installation phau ntawv, technical datasheet, inverter hloov / kuaj, thov xa peb nug | ||||
Roj teeb Cell:Khoom Paub meej:
Lub roj teeb tseem ceeb siv lithium hlau phosphate roj teeb-LFP 48173170E, lub peev xwm yog 120Ah, qhov nominal voltage yog 3.2V, qhov ua haujlwm voltage ntau yog 2.5 ~ 3.65V, lub hli tus kheej tawm tus nqi ntawm lub roj teeb tsawg dua lossis sib npaug li 3 feem pua.
Roj teeb Module:
Lub zog cia tus qauv module muaj 24 tib lub hlwb, qhov tshwj xeeb yog 2P12S, lub zog yog 9.216kWh, qhov nominal voltage yog 38.4V, qhov ua haujlwm voltage yog 33.6 ~ 43.2V, thiab qhov hnyav yog li 85kg.
Roj teeb pawg:
Lub roj teeb pawg muaj 18 lub zog khaws cov qauv qauv nrog cov lus qhia ntawm 2P216S, lub zog ntawm 165.888kWh, lub npe nominal voltage ntawm 691.2V, kev ua haujlwm voltage ntau ntawm 604.8V-766.8V, thiab tag nrho cov huab hwm coj ntawm kwv yees li. 1700kg ib.
PEB 500KW:
Bidirectional roj teeb inverter 500KW, tuaj yeem siv ib leeg lossis nrog lub hnub ci charger thiab lwm yam khoom siv rau cov ntawv thov sib txawv. Paralleling ntau chav nyob, Flexible Configuration, Programmable ua hauj lwm hom, Txhawb tej thaj chaw deb tswj ntawm DG, Touchscreen LCD.

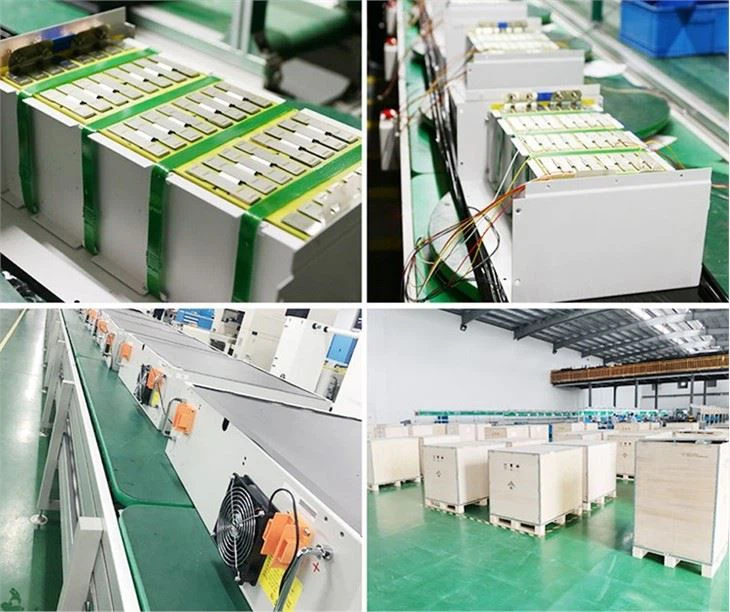

Peb qhov project:
Pob:
